DC Series Laboratory Refrigerated Circulator Constant Temperature Circulation Cooling Water Bath

Short Description:

  • Laboratory thermostatic bath and heating/cooling circulating water bath
  • Temperature range: (-5 ~ -40℃) ~ 100℃, Tank Volume: 6~100L
  • Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.05℃




  • Model: DC-0506~DC-05100: -5~100℃, 6~100L
  • Model: DC-1006~DC-10100: -10~100℃, 6~100L
  • Model: DC-2006~DC-2060: -20~100℃, 6~60L
  • Model: DC-3006~DC-3060: -30~100℃, 6~60L
  • Model: DC-4006~DC-4030: -40~100℃, 6~30L
  • Product Detail

    Product Tags

    Description:

    The thermostatic bath and heating circulating water bath is a piece of laboratory equipment that provides precise temperature control for experiments that require it. It can provide constant protection for your valuable processing equipment, such as spot welders and injection molding equipment, for many years. Also, the speed and accuracy of production can increase as you maintain a constant and proper cooling temperature in the equipment. For all your chilling needs requiring high stability with a wide variety of temperature control, select from our extensive range of recirculating chillers. Ideal for laboratory and industrial uses.

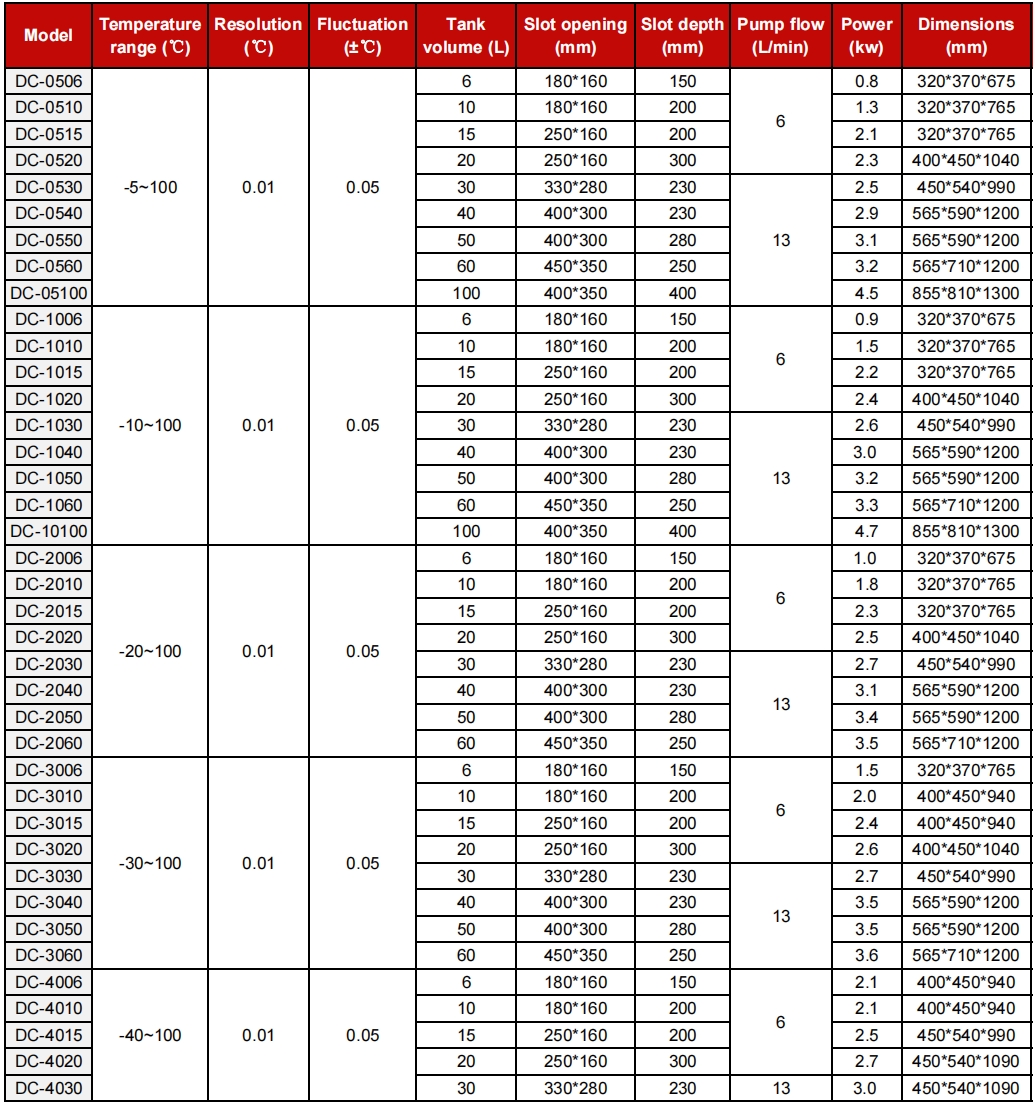

    Technical Parameter:

    Model Temperature range (℃) Resolution (℃) Fluctuation (±℃) Tank volume (L) Slot opening (mm) Slot depth (mm) Pump flow (L/min) Power (kw) Dimensions (mm)
    DC-0506 -5~100 0.01 0.05 6 180*160 150 6 0.8 320*370*675
    DC-0510 10 180*160 200 1.3 320*370*765
    DC-0515 15 250*160 200 2.1 320*370*765
    DC-0520 20 250*160 300 2.3 400*450*1040
    DC-0530 30 330*280 230 13 2.5 450*540*990
    DC-0540 40 400*300 230 2.9 565*590*1200
    DC-0550 50 400*300 280 3.1 565*590*1200
    DC-0560 60 450*350 250 3.2 565*710*1200
    DC-05100 100 400*350 400 4.5 855*810*1300
    DC-1006 -10~100 0.01 0.05 6 180*160 150 6 0.9 320*370*675
    DC-1010 10 180*160 200 1.5 320*370*765
    DC-1015 15 250*160 200 2.2 320*370*765
    DC-1020 20 250*160 300 2.4 400*450*1040
    DC-1030 30 330*280 230 13 2.6 450*540*990
    DC-1040 40 400*300 230 3.0 565*590*1200
    DC-1050 50 400*300 280 3.2 565*590*1200
    DC-1060 60 450*350 250 3.3 565*710*1200
    DC-10100 100 400*350 400 4.7 855*810*1300
    DC-2006 -20~100 0.01 0.05 6 180*160 150 6 1.0 320*370*675
    DC-2010 10 180*160 200 1.8 320*370*765
    DC-2015 15 250*160 200 2.3 320*370*765
    DC-2020 20 250*160 300 2.5 400*450*1040
    DC-2030 30 330*280 230 13 2.7 450*540*990
    DC-2040 40 400*300 230 3.1 565*590*1200
    DC-2050 50 400*300 280 3.4 565*590*1200
    DC-2060 60 450*350 250 3.5 565*710*1200
    DC-3006 -30~100 0.01 0.05 6 180*160 150 6 1.5 320*370*765
    DC-3010 10 180*160 200 2.0 400*450*940
    DC-3015 15 250*160 200 2.4 400*450*940
    DC-3020 20 250*160 300 2.6 400*450*1040
    DC-3030 30 330*280 230 13 2.7 450*540*990
    DC-3040 40 400*300 230 3.5 565*590*1200
    DC-3050 50 400*300 280 3.5 565*590*1200
    DC-3060 60 450*350 250 3.6 565*710*1200
    DC-4006 -40~100 0.01 0.05 6 180*160 150 6 2.1 400*450*940
    DC-4010 10 180*160 200 2.1 400*450*940
    DC-4015 15 250*160 200 2.5 450*540*990
    DC-4020 20 250*160 300 2.7 450*540*1090
    DC-4030 30 330*280 230 13 3.0 450*540*1090

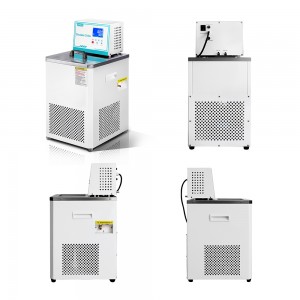

    DC lab thermostat Circulator bath

    More Detailed Pictures:

    Laboratory Circulator
    Laboratory Circulator
    refrigerated water bath for laboratory
    Laboratory Circulator
    Internal and External Circulation of lab circulator
    Accessories of lab circulator bath
    Accessories of lab circulator bath 01
    Accessories of lab circulator bath 02
    Refrigeration Cooling Circulator
    Refrigeration Cooling Circulator
    Laboratory Heating circulating Oil Bath
    Thermostat chilled water bath factory
    Thermostat Circulating Water Bath Factory certificate
