BD series (-5 ~ -40℃) ~ 100℃ High accuracy low temperature refrigerated thermostatic circulating laboratory cooling water bath chiller

Short Description:

Lab Refrigerated and Heating Circulator with PID Temperature Control System Thermostatic water bath
Temperature range: (-5 ~ -40℃) ~ 100℃, Tank Volume: 6~30L
Temperature Resolution: 0.001℃, Temperature Fluctuation: ±0.005 ~ 0.01℃

Model: BD-0506~BD-0530: -5~100℃, 6L~30L

Model: BD-1006~BD-1030: -10~100℃, 6L~30L

Model: BD-2006~BD-2030: -20~100℃, 6L~30L

Model: BD-3006~BD-3030: -30~100℃, 6L~30L

Model: BD-4006~BD-4030: -40~100℃, 6L~30L

Model: BD-5006~BD-5030: -50~100℃, 6L~30L

Model: BD-6006~BD-6030: -60~100℃, 6L~30L

Model: BD-7006~BD-7030: -70~100℃, 6L~30L

Model: BD-8006~BD-8030: -80~100℃, 6L~30L

Send email to us

Product Detail

Product Tags

Description:

BD series low temperature refrigerated thermostatic circulating laboratory heating cooling water bath adopts an advanced fluorine-free refrigeration system. This series of instruments is mainly developed for low-temperature experiments in scientific research, biology, physics, medicine, chemical and other departments with high requirements for constant temperature accuracy. It has the characteristics of making the temperature in the tank uniform and intelligent temperature control more accurate (temperature fluctuation range: ± 0.005- ± 0.01 ℃). It can also be used for calibration purposes in the manufacturing of ordinary thermometers and other temperature measuring instruments.

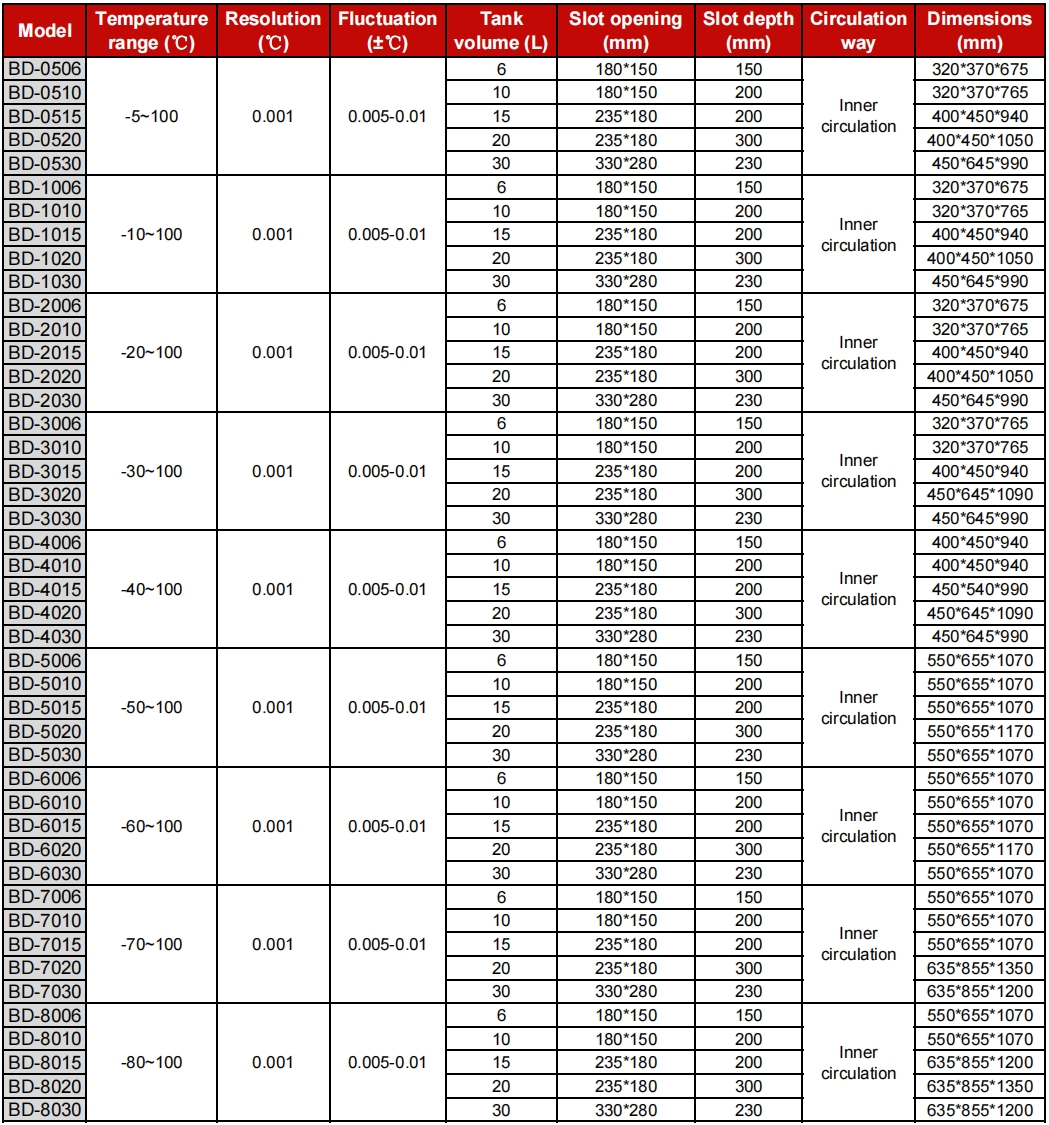

Technical Parameter:

Model	Temperature range (℃)	Resolution (℃)	Fluctuation (±℃)	Tank volume (L)	Slot opening (mm)	Slot depth (mm)	Circulation way	Dimensions (mm)
BD-0506	-5~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	320370675
BD-0510				10	180*150	200		320370765
BD-0515				15	235*180	200		400450940
BD-0520				20	235*180	300		4004501050
BD-0530				30	330*280	230		450645990
BD-1006	-10~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	320370675
BD-1010				10	180*150	200		320370765
BD-1015				15	235*180	200		400450940
BD-1020				20	235*180	300		4004501050
BD-1030				30	330*280	230		450645990
BD-2006	-20~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	320370675
BD-2010				10	180*150	200		320370765
BD-2015				15	235*180	200		400450940
BD-2020				20	235*180	300		4004501050
BD-2030				30	330*280	230		450645990
BD-3006	-30~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	320370765
BD-3010				10	180*150	200		320370765
BD-3015				15	235*180	200		400450940
BD-3020				20	235*180	300		4506451090
BD-3030				30	330*280	230		450645990
BD-4006	-40~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	400450940
BD-4010				10	180*150	200		400450940
BD-4015				15	235*180	200		450540990
BD-4020				20	235*180	300		4506451090
BD-4030				30	330*280	230		450645990
BD-5006	-50~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	5506551070
BD-5010				10	180*150	200		5506551070
BD-5015				15	235*180	200		5506551070
BD-5020				20	235*180	300		5506551170
BD-5030				30	330*280	230		5506551070
BD-6006	-60~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	5506551070
BD-6010				10	180*150	200		5506551070
BD-6015				15	235*180	200		5506551070
BD-6020				20	235*180	300		5506551170
BD-6030				30	330*280	230		5506551070
BD-7006	-70~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	5506551070
BD-7010				10	180*150	200		5506551070
BD-7015				15	235*180	200		5506551070
BD-7020				20	235*180	300		6358551350
BD-7030				30	330*280	230		6358551200
BD-8006	-80~100	0.001	0.005-0.01	6	180*150	150	Inner circulation	5506551070
BD-8010				10	180*150	200		5506551070
BD-8015				15	235*180	200		6358551200
BD-8020				20	235*180	300		6358551350
BD-8030				30	330*280	230		6358551200
