Centrifugal spray dryer
Description:
Mini laboratory spray dryer (small spray dryer) has a compact design and can be independently placed in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, fully automatic or manual monitoring can be used for two operation modes, convenient operation and monitoring of the experimental process. It is the spray dryer with the smallest volume, the lowest noise and the excellent drying effect.
Main Features of Small Spray Dryer:
●Original spray nozzle, high efficiency.
●Colorful large touch screen operation, fully automatic control and manual control combined, Chinese and English panel, parameter LCD display.
●Real-time regulation PID thermostatic control technology, accurate temperature control, heating temperature control accuracy ± 1 ℃.
●Spraying, drying and collecting devices are made of transparent and high quality high-temperature resistant borosilicate glass, and the whole process of spray drying experiment can be visualized.
●The atomization structure of two-fluid spray is made of high-precision 316 stainless steel, and the particle size of the spray powder is normally distributed with good fluidity.
●Jet automatic dredging (through the needle) and adjustable frequency, when the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
● The feeding volume can be adjusted by feeding peristaltic pump.
●Special protection function, the fan does not start, the heater can not start.
●Built-in imported oil-free air compressor, the noise is less than 50db.
●After drying, the granularity of the product is uniform.
Technical Parameter:
| SMALL SPRAY DRYER | ||||
| Models | TENLIN-8000Y (Glass drying chamber) |
TENLIN-8000S (Stainless steel drying chamber) |
TENLIN-8000SC (Stainless steel bag dust) |
TENLIN-8000SF (Stainless steel double spin separator) |
| Air Inlet temperature control | 30~300℃ | |||
| Air outlet temperature control | 30~150℃ | |||
| The amount of water evaporated | 1500ML/H~2000ML/H | |||
| Maximum feed rate | 2000ML/H | |||
| Minimum feed rate | 50ML | |||
| Feeding method | Peristaltic pump adjustment | |||
| Average drying time | 1.0~1.5S | |||
| Electric heater power | 3.5KW AC220V Single phase ground | |||
| Fan | 0.55KW Max air volume 5.6M3/Min Max wind pressure1020PA | |||
| Air compressor | 1.2KW Max gas production 4.2 M3/H | |||
| Work Compressed air | 2~3BAR | |||
| External dimension of equipment | 1200MM(H)x600MM(L)x700MM(W) | |||
| Nozzle diameter | 1.00MM (0.7 1.5 2.0) 0ptional | |||
| Weight of equipment | About 130KG | |||
| Models | TENLIN-3000L (Spray dryer) |
| Air Inlet temperature control | 30°C~300°C |
| Air outlet temperature control | 30°C~140°C |
| The amount of water evaporated | 1500ML/H~3000ML/H |
| Maximum feed rate | MAX3000ML/H (Adjustable) |
| Minimum feed rate | 50ML |
| Feeding method | Peristaltic pump adjustment |
| Temperature control accuracy | ±1°C |
| Average drying time | 1.0~1.5S |
| Nozzle diameter | 1.00MM(0.7 1.5 2.0) 0ptional |
| Fan Power and air volume | 0.55KW,100M3/H |
| Air compressor power and gas production | 1.2KW，108L/MIN |
| Heating power | 5KW |
| Whole machine power | 7KW 220V/50HZ |
| Weight of equipment | 130KG |
| External dimension of equipment | 1450mm(H)x800mm(L)800mm(W) |
| Centrifugal spray dryer | ||||||
| Models | TENLIN-3L | TENLIN-5L | TENLIN-1OL | TENLIN-15L | TENLIN-2OL | TENLIN-3OL |
| Air Inlet temperature control | 30~300℃ | |||||
| Air outlet temperature control | 30℃~140℃ | |||||
| Rotating speed of nozzle | 36000R/MIN(Adjustable) | |||||
| Maximum feed rate | MAX 3000ML/H | MAX 5000ML/H | MAX 10000ML/H | MAX 15000ML/H | MAX 20000ML/H | MAX 30000ML/H |
| Minimum feed rate | 50ML | 50ML | 100ML | 200ML | 300ML | 500ML |
| Feeding method | Peristaltic pump adjustment | |||||
| Average drying time | 1.0~1.5S | |||||
| Induced draft fan power | 0.75KW | 3KW | 4KW | 5KW | ||
| Heating power | 6KW | 9KW | 18KW | 27KW | ||
| Whole machine power | 7KW/220V | 13KW/380V | 23KW/380V | 32KW/380V | 33KW/380V | |
| SIZE(MM) | 1100*900*1600 | 1600*1200*2000 | 1700*1300*2200 | 2400*1500*2500 | 2400*1500*2800 | 2500*1500*3200 |

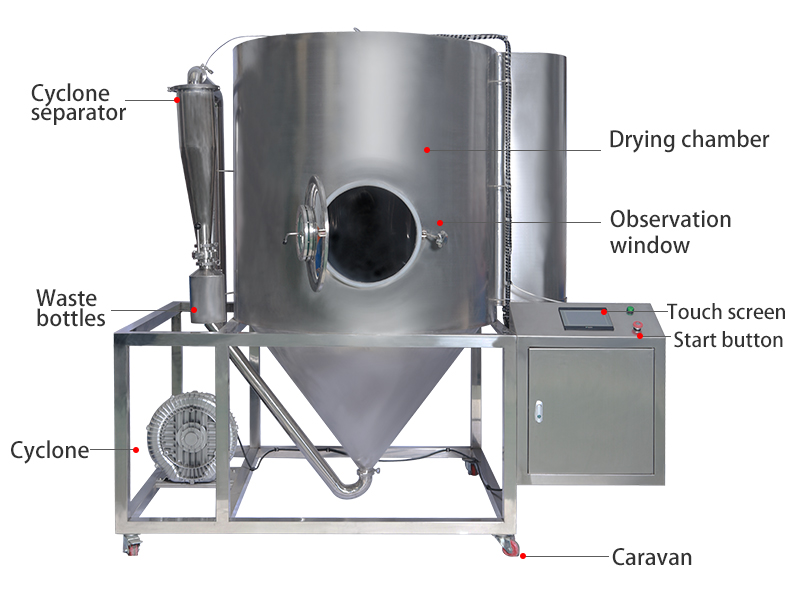

More Detailed Pictures:
