BS Series Laboratory thermostatic circulator high precision constant temperature heat circulating water bath RT+10~100℃-300℃
Description:
Thermostatic water (oil) bath with fast temperature lift, stable, reliable. PID, PT100 temperature measuring, high accuracy, small fluctuation; the instrument working is stable, operation easy. It is widely used Biological engineering, pharmaceutica, l food, chemical metallurgy, and petroleum industry and other fields. Supply high accurate controlled temperature stable place, which is the ideal constant temperature equipment for institute, colleges and universities, the factory laboratory, quality testing department.

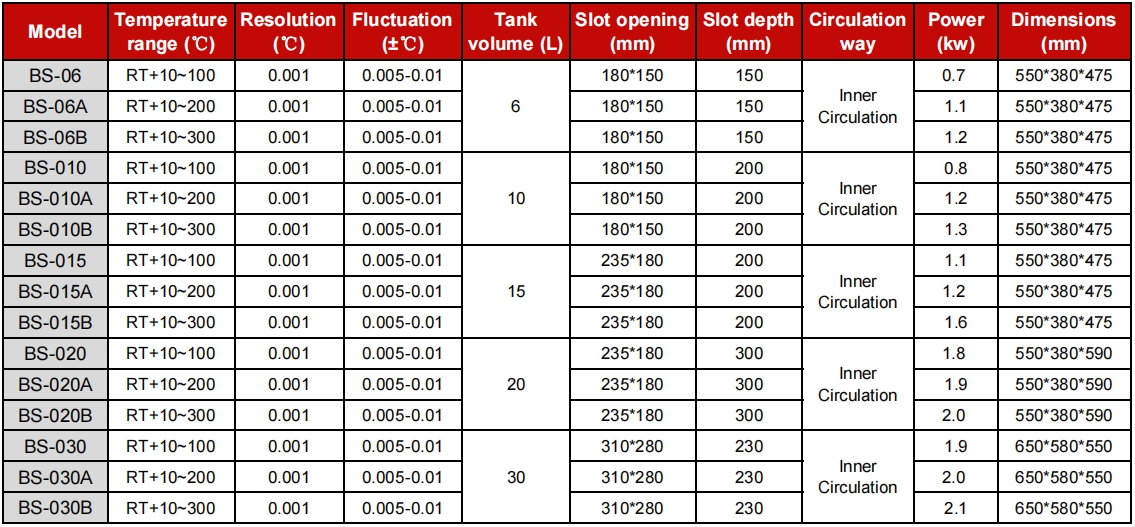

Technical Parameter:
| Model | Temperature range (℃) | Resolution (℃) | Fluctuation (±℃) | Tank volume (L) | Slot opening (mm) | Slot depth (mm) | Circulation way | Power (kw) | Dimensions (mm) |
| BS-06 | RT+10~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner Circulation | 0.7 | 550*380*475 |
| BS-06A | RT+10~200 | 0.001 | 0.005-0.01 | 180*150 | 150 | 1.1 | 550*380*475 | ||
| BS-06B | RT+10~300 | 0.001 | 0.005-0.01 | 180*150 | 150 | 1.2 | 550*380*475 | ||
| BS-010 | RT+10~100 | 0.001 | 0.005-0.01 | 10 | 180*150 | 200 | Inner Circulation | 0.8 | 550*380*475 |
| BS-010A | RT+10~200 | 0.001 | 0.005-0.01 | 180*150 | 200 | 1.2 | 550*380*475 | ||
| BS-010B | RT+10~300 | 0.001 | 0.005-0.01 | 180*150 | 200 | 1.3 | 550*380*475 | ||
| BS-015 | RT+10~100 | 0.001 | 0.005-0.01 | 15 | 235*180 | 200 | Inner Circulation | 1.1 | 550*380*475 |
| BS-015A | RT+10~200 | 0.001 | 0.005-0.01 | 235*180 | 200 | 1.2 | 550*380*475 | ||
| BS-015B | RT+10~300 | 0.001 | 0.005-0.01 | 235*180 | 200 | 1.6 | 550*380*475 | ||
| BS-020 | RT+10~100 | 0.001 | 0.005-0.01 | 20 | 235*180 | 300 | Inner Circulation | 1.8 | 550*380*590 |
| BS-020A | RT+10~200 | 0.001 | 0.005-0.01 | 235*180 | 300 | 1.9 | 550*380*590 | ||
| BS-020B | RT+10~300 | 0.001 | 0.005-0.01 | 235*180 | 300 | 2.0 | 550*380*590 | ||
| BS-030 | RT+10~100 | 0.001 | 0.005-0.01 | 30 | 310*280 | 230 | Inner Circulation | 1.9 | 650*580*550 |
| BS-030A | RT+10~200 | 0.001 | 0.005-0.01 | 310*280 | 230 | 2.0 | 650*580*550 | ||
| BS-030B | RT+10~300 | 0.001 | 0.005-0.01 | 310*280 | 230 | 2.1 | 650*580*550 |
More Detailed Pictures:
