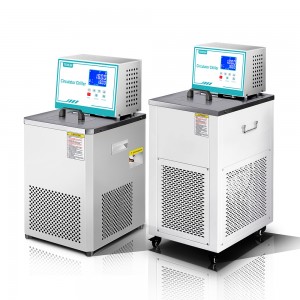

HX-II Series (0 ~ -40℃) ~ 160℃ Series Laboratory Refrigerated Thermostat Circulator Water Bath Chiller Heating Bath Circulator

Short Description:

  • Laboratory water bath heating cooling circulators
  • Temperature range: (-5 ~ -40℃) ~ 100℃, Tank Volume: 8~30L
  • Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.05℃




  • Model: HX-08~HX-030: 0~100℃, 8~30L
  • Model: HX-0508~HX-0530: -5~100℃, 8~30L
  • Model: HX-1008~HX-1030: -10~100℃, 8~30L
  • Model: HX-2008~HX-2030: -20~100℃, 8~30L
  • Model: HX-3008~HX-3030: -30~100℃, 8~30L
  • Model: HX-4008~HX-4030: -40~100℃, 8~30L
  • Product Detail

    Product Tags

    Description:

    Cryostat circulators/Low temperature thermostatic circulator heating cooling water bath are often used to cool the heating section of semiconductor manufacturing equipment: single crystal wafer washing and reprinting, printing machines, automatic holder mounting devices, spraying devices, ion plating devices, etching devices, single crystal wafer processing devices, slicers, packaging machines, temperature management of developers, light exposure devices, heating devices for the magnetic generation section, etc. It also plays a big role in cooling the heating part of laser equipment: laser processing, heating part of fusion machine, laser marker, generator, CO2 laser processing machine, etc.

    Technical Parameter:

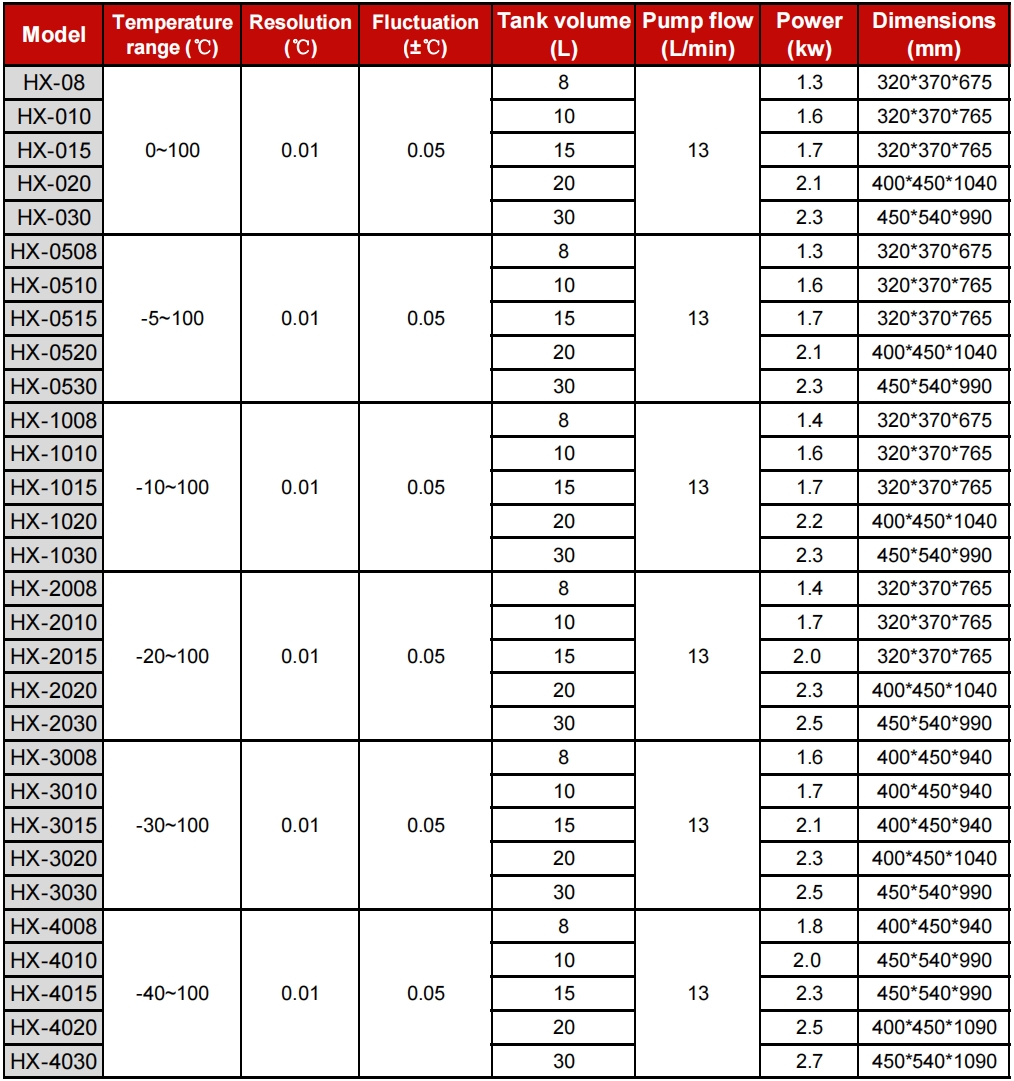

    Model Temperature range (℃) Resolution (℃) Fluctuation (±℃) Tank volume (L) Pump flow (L/min) Power (kw) Dimensions (mm)
    HX-08 0~100 0.01 0.05 8 13 1.3 320*370*675
    HX-010 10 1.6 320*370*765
    HX-015 15 1.7 320*370*765
    HX-020 20 2.1 400*450*1040
    HX-030 30 2.3 450*540*990
    HX-0508 -5~100 0.01 0.05 8 13 1.3 320*370*675
    HX-0510 10 1.6 320*370*765
    HX-0515 15 1.7 320*370*765
    HX-0520 20 2.1 400*450*1040
    HX-0530 30 2.3 450*540*990
    HX-1008 -10~100 0.01 0.05 8 13 1.4 320*370*675
    HX-1010 10 1.6 320*370*765
    HX-1015 15 1.7 320*370*765
    HX-1020 20 2.2 400*450*1040
    HX-1030 30 2.3 450*540*990
    HX-2008 -20~100 0.01 0.05 8 13 1.4 320*370*765
    HX-2010 10 1.7 320*370*765
    HX-2015 15 2.0 320*370*765
    HX-2020 20 2.3 400*450*1040
    HX-2030 30 2.5 450*540*990
    HX-3008 -30~100 0.01 0.05 8 13 1.6 400*450*940
    HX-3010 10 1.7 400*450*940
    HX-3015 15 2.1 400*450*940
    HX-3020 20 2.3 400*450*1040
    HX-3030 30 2.5 450*540*990
    HX-4008 -40~100 0.01 0.05 8 13 1.8 400*450*940
    HX-4010 10 2.0 450*540*990
    HX-4015 15 2.3 450*540*990
    HX-4020 20 2.5 400*450*1090
    HX-4030 30 2.7 450*540*1090
    HX lab thermostat Circulator bath

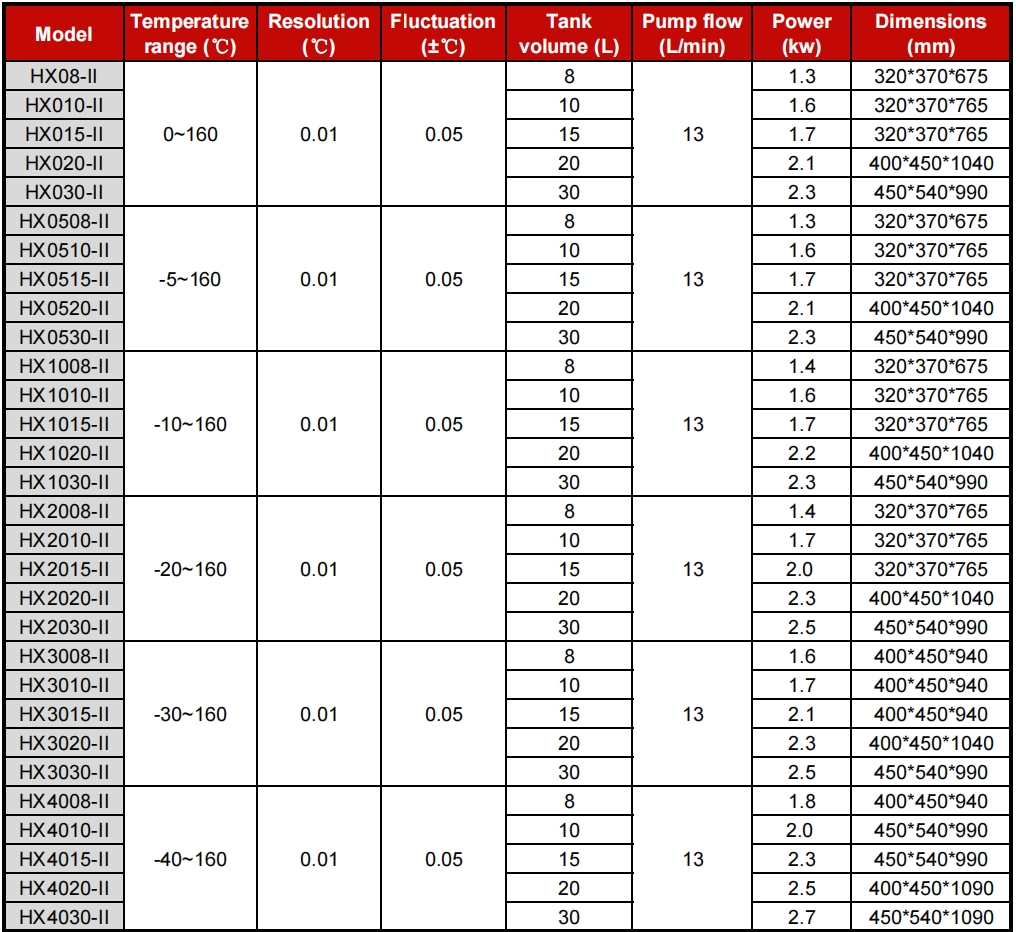

    Model Temperature range (℃) Resolution (℃) Fluctuation (±℃) Tank volume (L) Pump flow (L/min) Power (kw) Dimensions (mm)
    HX08-II 0~160 0.01 0.05 8 13 1.3 320*370*675
    HX010-II 10 1.6 320*370*765
    HX015-II 15 1.7 320*370*765
    HX020-II 20 2.1 400*450*1040
    HX030-II 30 2.3 450*540*990
    HX0508-II -5~160 0.01 0.05 8 13 1.3 320*370*675
    HX0510-II 10 1.6 320*370*765
    HX0515-II 15 1.7 320*370*765
    HX0520-II 20 2.1 400*450*1040
    HX0530-II 30 2.3 450*540*990
    HX1008-II -10~160 0.01 0.05 8 13 1.4 320*370*675
    HX1010-II 10 1.6 320*370*765
    HX1015-II 15 1.7 320*370*765
    HX1020-II 20 2.2 400*450*1040
    HX1030-II 30 2.3 450*540*990
    HX2008-II -20~160 0.01 0.05 8 13 1.4 320*370*765
    HX2010-II 10 1.7 320*370*765
    HX2015-II 15 2.0 320*370*765
    HX2020-II 20 2.3 400*450*1040
    HX2030-II 30 2.5 450*540*990
    HX3008-II -30~160 0.01 0.05 8 13 1.6 400*450*940
    HX3010-II 10 1.7 400*450*940
    HX3015-II 15 2.1 400*450*940
    HX3020-II 20 2.3 400*450*1040
    HX3030-II 30 2.5 450*540*990
    HX4008-II -40~160 0.01 0.05 8 13 1.8 400*450*940
    HX4010-II 10 2.0 450*540*990
    HX4015-II 15 2.3 450*540*990
    HX4020-II 20 2.5 400*450*1090
    HX4030-II 30 2.7 450*540*1090
    Laboratory cooling heating circulator

    More Detailed Pictures:

    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Refrigerating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Refrigeration Cooling Circulator factory
    Thermostat chilled water bath factory
    Thermostat Circulating Water Bath Factory certificate
