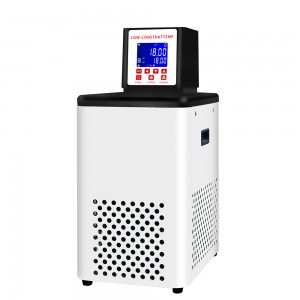

Laboratory -5~100 30L Degree High Precision Low-temperature Thermostat Refrigerated Circulator Water Bath

Short Description:

TLBD Laboratory Thermostat Circulating Water Bath
Temperature range: (-5 ~ -40℃) ~ 100℃, Tank Volume: 6~30L
Temperature Resolution: 0.001℃, Temperature Fluctuation: ±0.005~0.01℃

Model: TLBD-0506~TLBD-4006: -5/-10/-20/-30-40℃~100℃, 6L

Model: TLBD-0510~TLBD-4010: -5/-10/-20/-30-40℃~100℃, 10L

Model: TLBD-0515~TLBD-4015: -5/-10/-20/-30-40℃~100℃, 15L

Model: TLBD-0520~TLBD-4020: -5/-10/-20/-30-40℃~100℃, 20L

Model: TLBD-0530~TLBD-4030: -5/-10/-20/-30-40℃~100℃, 30L

Send email to us

Product Detail

Product Tags

Description:

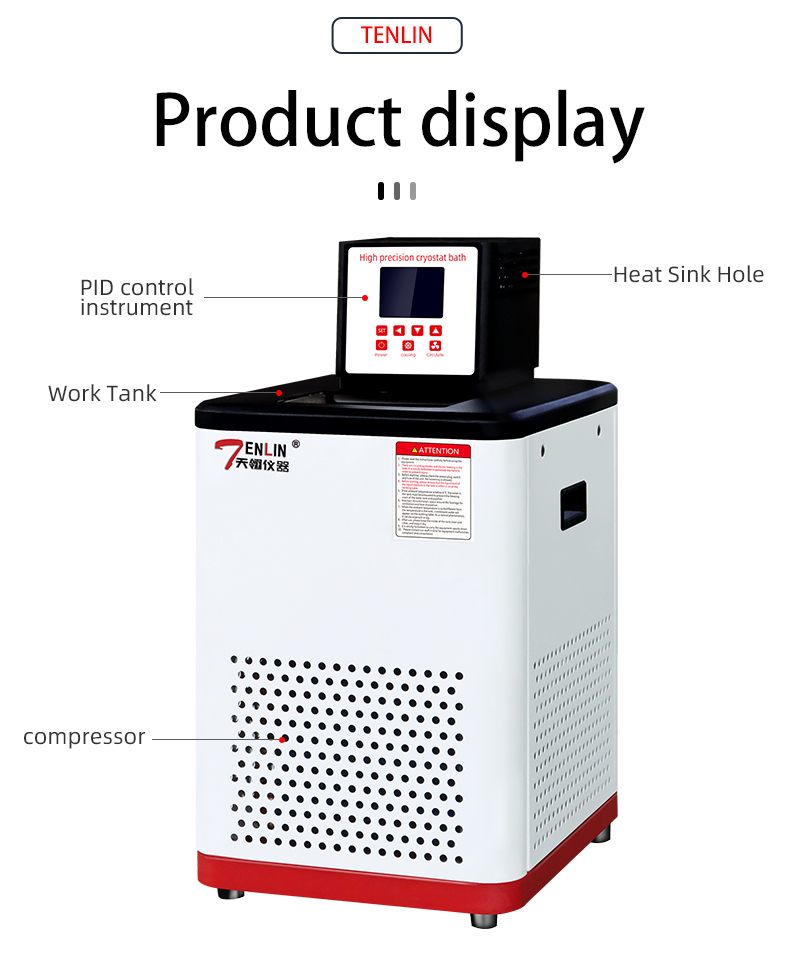

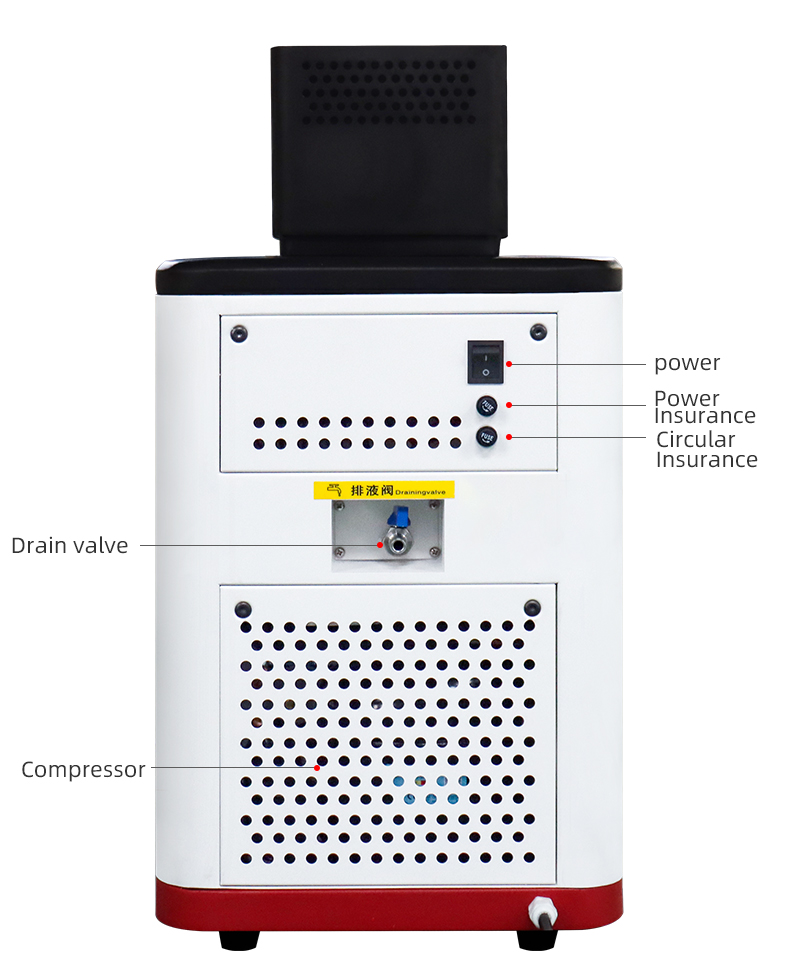

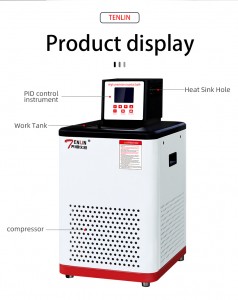

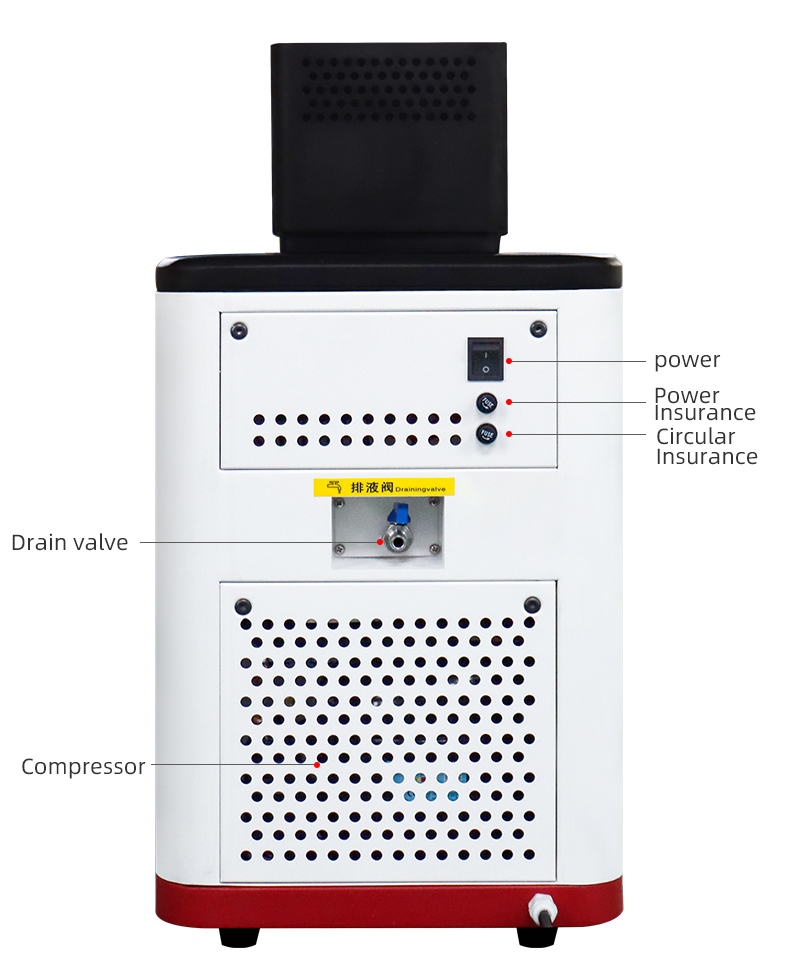

More Detailed Pictures:

TLBD series Laboratory High precision thermostat water bath is mainly aimed at parts that require high precision in constant temperature, such as scientific research, materials, physics, medicine, and chemistry; Suitable for various thermometers and types Calibration standards or constant temperature tests with high temperature accuracy in the manufacturing of type thermistors and other temperature measuring instruments

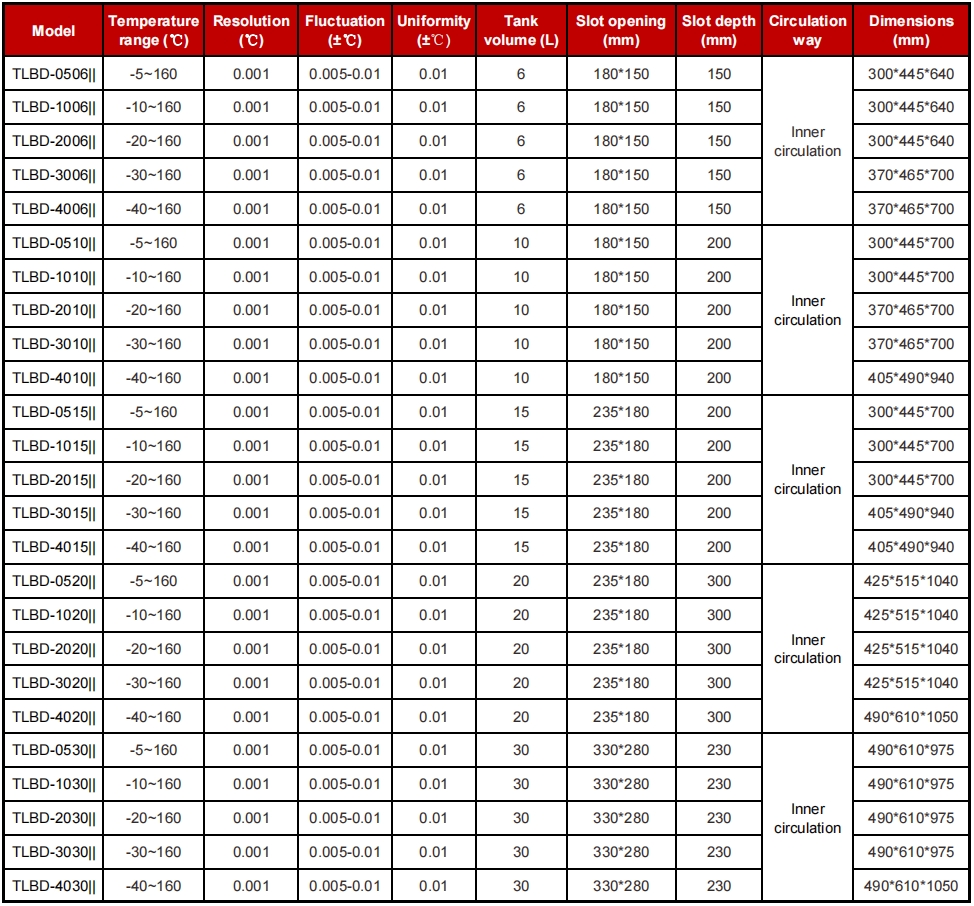

Technical Parameter:

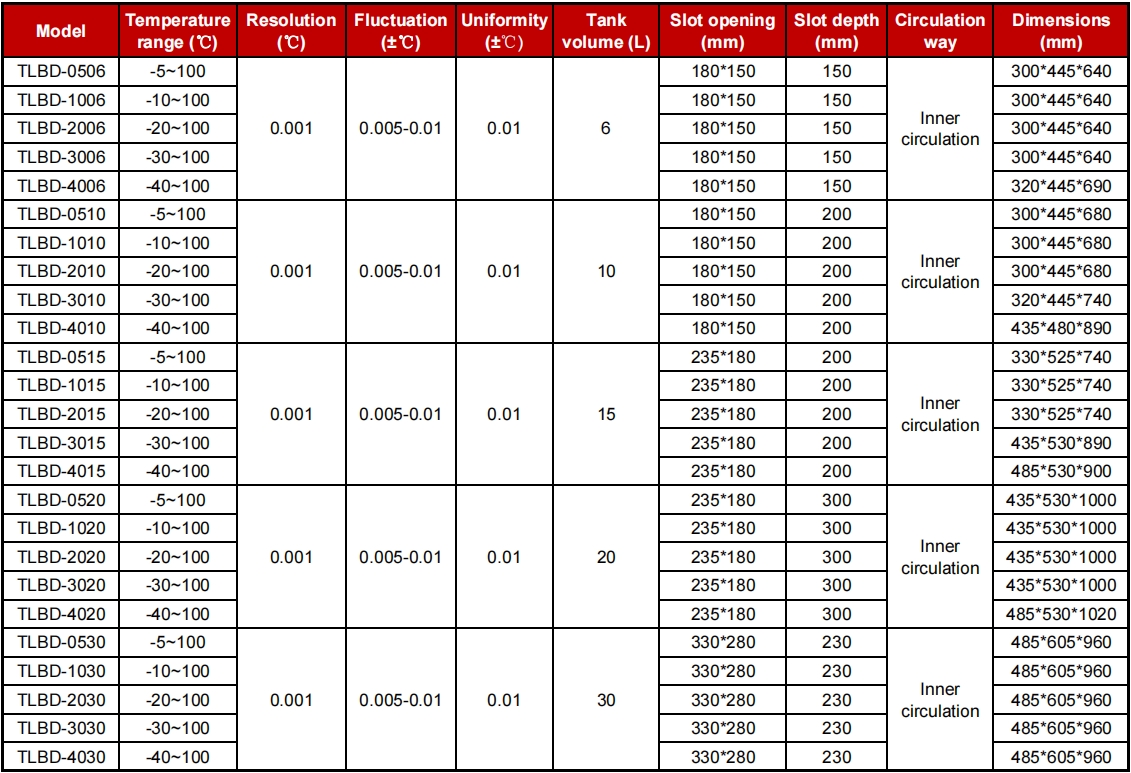

Model	Temperature range (℃)	Resolution (℃)	Fluctuation (±℃)	Uniformity (±℃)	Tank volume (L)	Slot opening (mm)	Slot depth (mm)	Circulation way	Dimensions (mm)

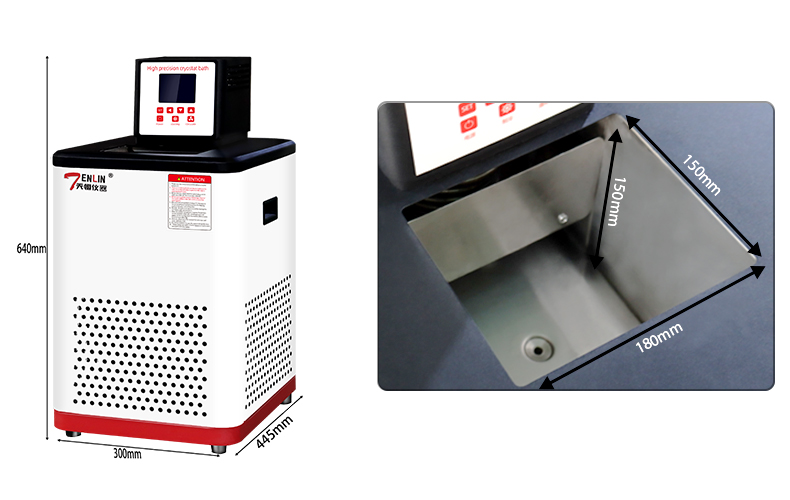

TLBD-0506	-5~100	0.001	0.005-0.01	0.01	6	180*150	150	Inner circulation	300445640
TLBD-1006	-10~100					180*150	150		300445640
TLBD-2006	-20~100					180*150	150		300445640
TLBD-3006	-30~100					180*150	150		300445640
TLBD-4006	-40~100					180*150	150		320445690
TLBD-0510	-5~100	0.001	0.005-0.01	0.01	10	180*150	200	Inner circulation	300445680
TLBD-1010	-10~100					180*150	200		300445680
TLBD-2010	-20~100					180*150	200		300445680
TLBD-3010	-30~100					180*150	200		320445740
TLBD-4010	-40~100					180*150	200		435480890
TLBD-0515	-5~100	0.001	0.005-0.01	0.01	15	235*180	200	Inner circulation	330525740
TLBD-1015	-10~100					235*180	200		330525740
TLBD-2015	-20~100					235*180	200		330525740
TLBD-3015	-30~100					235*180	200		435530890
TLBD-4015	-40~100					235*180	200		485530900
TLBD-0520	-5~100	0.001	0.005-0.01	0.01	20	235*180	300	Inner circulation	4355301000
TLBD-1020	-10~100					235*180	300		4355301000
TLBD-2020	-20~100					235*180	300		4355301000
TLBD-3020	-30~100					235*180	300		4355301000
TLBD-4020	-40~100					235*180	300		4855301020
TLBD-0530	-5~100	0.001	0.005-0.01	0.01	30	330*280	230	Inner circulation	485605960
TLBD-1030	-10~100					330*280	230		485605960
TLBD-2030	-20~100					330*280	230		485605960
TLBD-3030	-30~100					330*280	230		485605960
TLBD-4030	-40~100					330*280	230		485605960

Model	Temperature range (℃)	Resolution (℃)	Fluctuation (±℃)	Uniformity (±℃)	Tank volume (L)	Slot opening (mm)	Slot depth (mm)	Circulation way	Dimensions (mm)
TLBD-0506	-5~100	0.001	0.005-0.01	0.01	6	180*150	150	Inner circulation	300445640
TLBD-1006	-10~100					180*150	150		300445640
TLBD-2006	-20~100					180*150	150		300445640
TLBD-3006	-30~100					180*150	150		300445640
TLBD-4006	-40~100					180*150	150		320445690
TLBD-0510	-5~100	0.001	0.005-0.01	0.01	10	180*150	200	Inner circulation	300445680
TLBD-1010	-10~100					180*150	200		300445680
TLBD-2010	-20~100					180*150	200		300445680
TLBD-3010	-30~100					180*150	200		320445740
TLBD-4010	-40~100					180*150	200		435480890
TLBD-0515	-5~100	0.001	0.005-0.01	0.01	15	235*180	200	Inner circulation	370465700
TLBD-1015	-10~100					235*180	200		370465700
TLBD-2015	-20~100					235*180	200		370465700
TLBD-3015	-30~100					235*180	200		435480890
TLBD-4015	-40~100					235*180	200		485605930
TLBD-0520	-5~100	0.001	0.005-0.01	0.01	20	235*180	300	Inner circulation	435480990
TLBD-1020	-10~100					235*180	300		435480990
TLBD-2020	-20~100					235*180	300		4355001030
TLBD-3020	-30~100					235*180	300		4355001030
TLBD-4020	-40~100					235*180	300		4856051030
TLBD-0530	-5~100	0.001	0.005-0.01	0.01	30	330*280	230	Inner circulation	485605960
TLBD-1030	-10~100					330*280	230		485605960
TLBD-2030	-20~100					330*280	230		485605960
TLBD-3030	-30~100					330*280	230		485605960
TLBD-4030	-40~100					330*280	230		485605960
