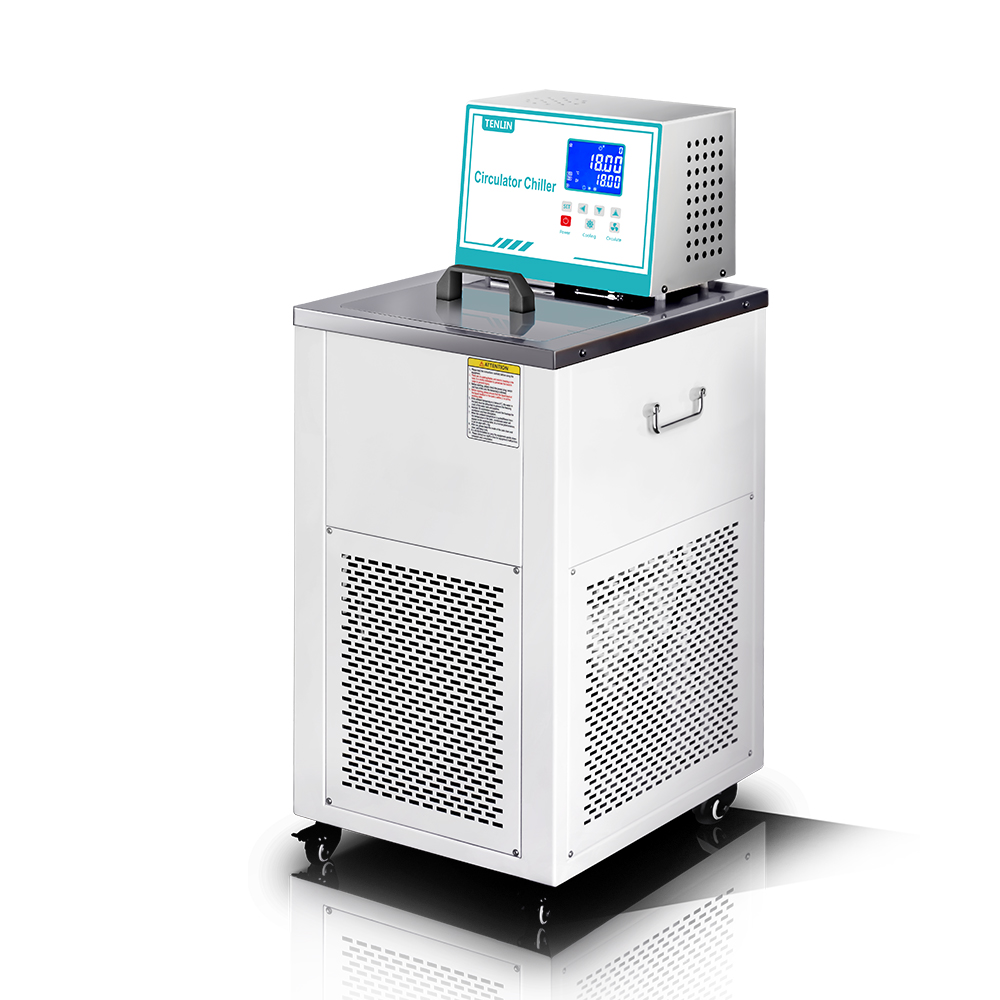

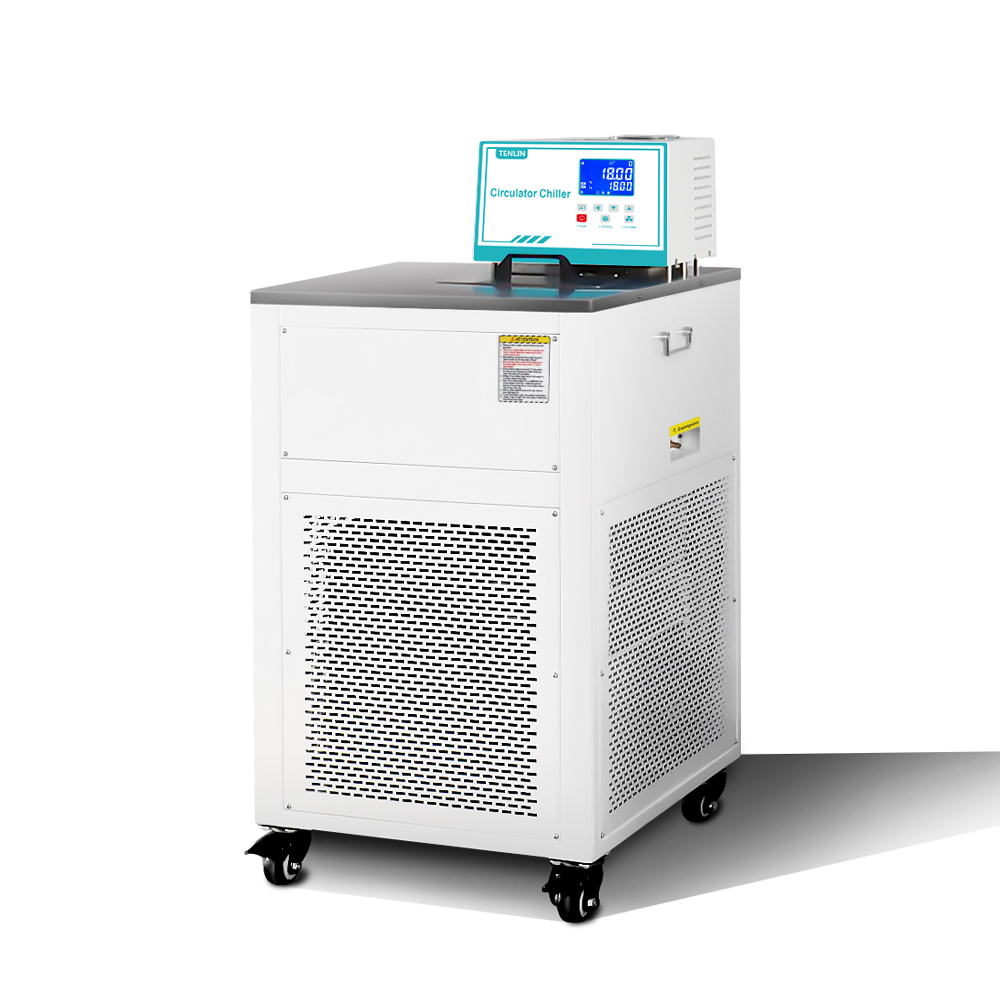

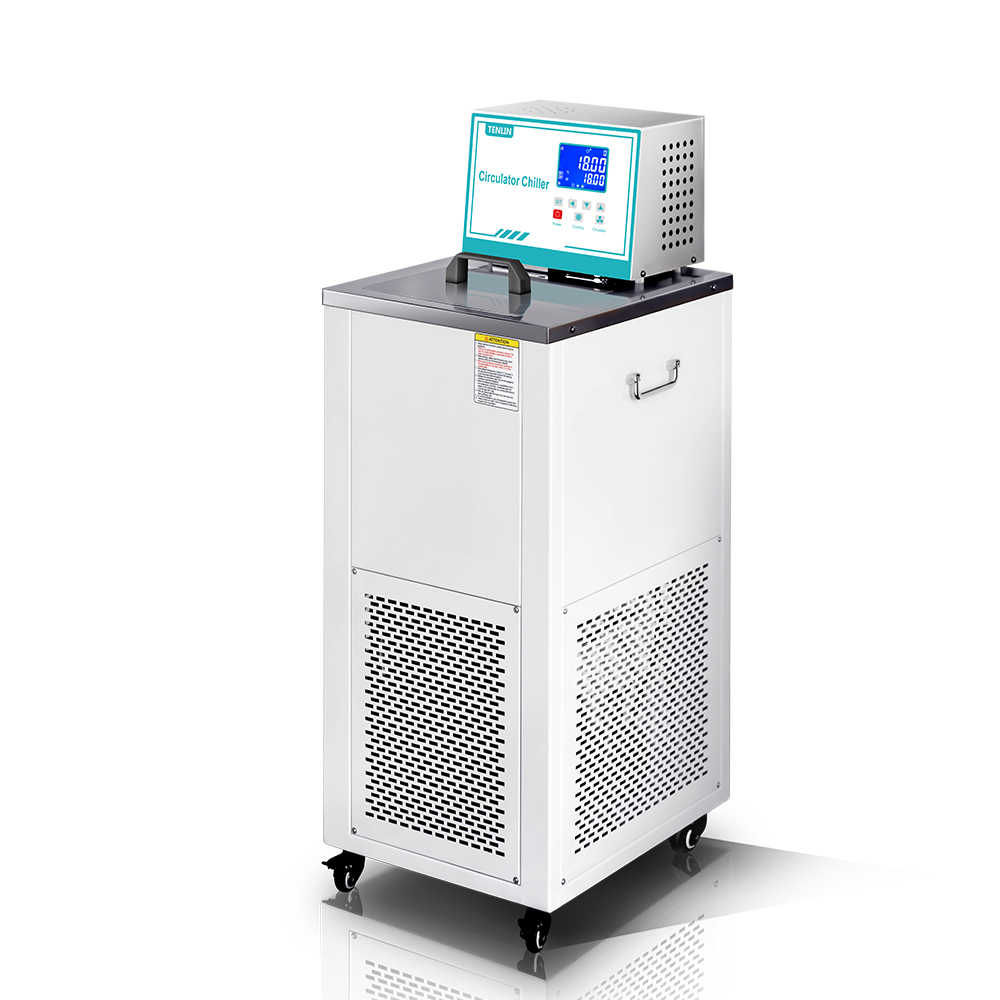

Laboratory Thermostat Bath -50/-60/-70/-80℃~100℃ Cooling Heating Circulation refrigerated water bath

Short Description:

  • Refrigerated Heating Lab Circulating Water Bath
  • Temperature range: -50℃ ~ 100℃, Tank Volume: 6~30L
  • Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.05℃




  • Model: DC-5006~DC-5030: -50~100℃, 6~30L
  • Model: DC-6006~DC-6030: -60~100℃, 6~30L
  • Model: DC-7006~DC-7030: -70~100℃, 6~30L
  • Model: DC-8006~DC-8030: -80~100℃, 6~30L
  • Product Detail

    Product Tags

    Description:

    1. Premium Material: The stainless steel work surface of the lab cooler is widened and thickened, and the whole machine adopts electrostatic spraying technology to prevent rust. Stainless steel cover and hidden handle design make it more convenient.
    2. High Quality Circulating Pump: The cooling chiller circulation system consists of internal and external circulation. The circulating pump adds a cooling fan, which is more durable and prolongs the service life.
    3. INTELLIGENT CONTROL: Intelligent instrument control, easy to operate, can correct the deviation of the temperature measurement value, high-temperature control accuracy, and good stability.
    4. PROTECTION SYSTEM: The refrigeration has overheating and over current protection. The control system has over-temperature tweet alarms, which can set the upper and lower limits of the temperature. The over-temperature alarm temperature can automatically cut off the load when over-temperature.
    5. Heat Emission Hole: The Low-temperature chillers are designed with multiple vent holes for rapid heat dissipation and stable temperature.
    6. Draining Valve: The refrigerated water chiller adopts an Invisible drain valve design, clean appearance, more convenient drain.
    7. WIDE APPLICATION: Recirculating water cooling Chiller is particularly suitable for chemical, biological, and physical laboratory work under normal conditions or where low temperatures are required.

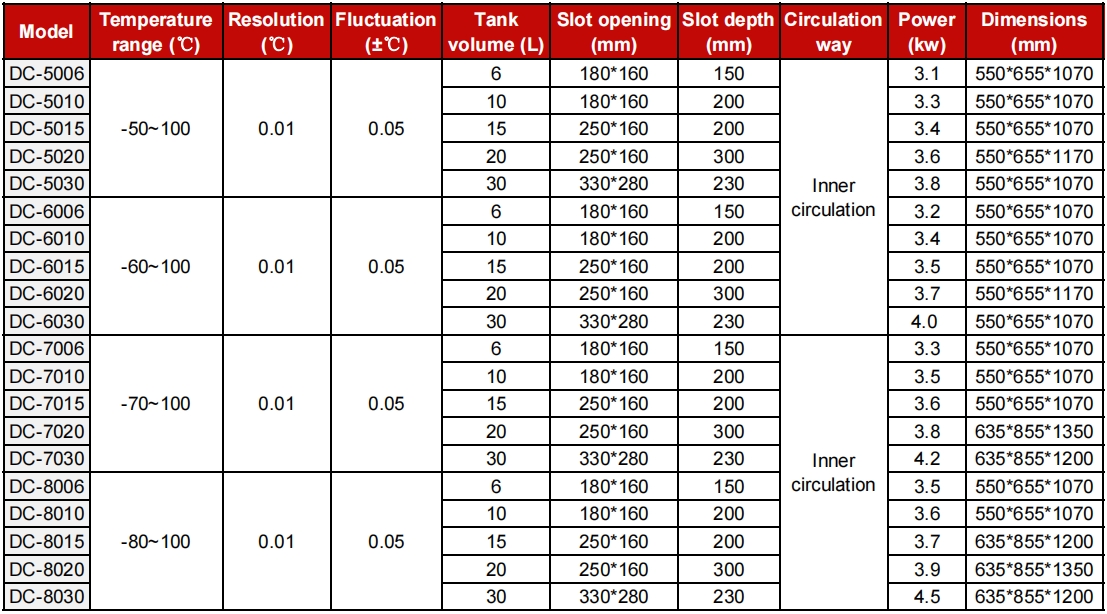

    Technical Parameter:

    Model Temperature range (℃) Resolution (℃) Fluctuation (±℃) Tank volume (L) Slot opening (mm) Slot depth (mm) Circulation way Power (kw) Dimensions (mm)
    DC-5006 -50~100 0.01 0.05 6 180*160 150 Inner circulation 3.1 550*655*1070
    DC-5010 10 200 3.3
    DC-5015 15 250*160 3.4
    DC-5020 20 300 3.6 550*655*1170
    DC-5030 30 330*280 230 3.8 550*655*1070
    DC-6006 -60~100 0.01 0.05 6 180*160 150 Inner circulation 3.2
    DC-6010 10 200 3.4
    DC-6015 15 250*160 3.5
    DC-6020 20 300 3.7 550*655*1170
    DC-6030 30 330*280 230 4.0 550*655*1070
    DC-7006 -70~100 0.01 0.05 6 180*160 150 Inner circulation 3.3
    DC-7010 10 200 3.5
    DC-7015 15 250*160 3.6
    DC-7020 20 300 3.8 635*855*1350
    DC-7030 30 330*280 230 4.2 635*855*1200
    DC-8006 -80~100 0.01 0.05 6 180*160 150 Inner circulation 3.5 550*655*1070
    DC-8010 10 200 3.6
    DC-8015 15 250*160 3.7 635*855*1200
    DC-8020 20 300 3.9 635*855*1350
    DC-8030 30 330*280 230 4.5 635*855*1200
    DC low temp thermostat Circulator bath

    More Detailed Pictures:

    Laboratory Circulator
    Laboratory Circulator
    Laboratory Circulator
    refrigerated water bath for laboratory
    Laboratory Circulator
    Accessories of lab circulator bath
    Accessories of lab circulator bath 01
    Accessories of lab circulator bath 02
    Refrigeration Cooling Circulator
    Laboratory Heating circulating Oil Bath
    Thermostat chilled water bath factory
    Thermostat Circulating Water Bath Factory certificate
