Laboratory Low-temperature Thermostat Refrigerated Circulating Water Bath

Short Description:

  • TLH Laboratory Thermostat Circulating Water Bath
  • Temperature range: (0 ~ -40℃) ~ 100℃, Tank Volume: 8~30L
  • Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.05℃




  • Model: TLH-08~TLH-4008: 0/-5/-10/-20/-30-40℃~100℃, 8L
  • Model: TLH-010~TLH-4010: 0/-5/-10/-20/-30-40℃~100℃, 10L
  • Model: TLH-015~TLH-4015: 0/-5/-10/-20/-30-40℃~100℃, 15L
  • Model: TLH-020~TLH-4020: 0/-5/-10/-20/-30-40℃~100℃, 20L
  • Model: TLH-030~TLH-4030: 0/-5/-10/-20/-30-40℃~100℃, 30L
  • Product Detail

    Product Tags

    Description:

    Cryostat circulators/Low temperature thermostatic circulator heating cooling water bath are often used to cool the heating section of semiconductor manufacturing equipment: single crystal wafer washing and reprinting, printing machines, automatic holder mounting devices, spraying devices, ion plating devices, etching devices, single crystal wafer processing devices, slicers, packaging machines, temperature management of developers, light exposure devices, heating devices for the magnetic generation section, etc. It also plays a big role in cooling the heating part of laser equipment: laser processing, heating part of fusion machine, laser marker, generator, CO2 laser processing machine, etc.

    Technical Parameter:

    Model Temp Range (℃) Resolution
    (℃)
    Fluctuation
    (±℃)
    Volume
    (L)
    Pump Flow (L/min) Lift (m) Dimension
    (mm)
    TLH-08 0~100 0.01 0.05 8 13 3 300*445*670
    TLH-0508 -5~100 300*445*670
    TLH1008 -10~100 300*445*670
    TLH-2008 -20~100 300*445*670
    TLH-3008 -30~100 320*445*720
    TLH-4008 -40~100 320*445*720
    TLH-010 0~100 0.01 0.05 10 13 3 300*445*710
    LH-0510 -5~100 300*445*710
    TLH-1010 -10~100 300*445*710
    TLH-2010 -20~100 300*445*710
    TLH-3010 -30~100 320*445*760
    TLH-4010 -40~100 435*480*920
    TLH-015 0~100 0.01 0.05 15 13 3 370*465*700
    TLH-0515 -5~100 330*465*760
    TLH-1015 -10~100 330*465*760
    TLH-2015 -20~100 330*465*760
    TLH-3015 -30~100 435*480*920
    TLH-4015 -40~100 485*530*930
    TLH-020 0~100 0.01 0.05 20 13 3 425*515*990
    TLH-0520 -5~100 435*480*1020
    TLH-1020 -10~100 435*480*1020
    TLH-2020 -20~100 435*480*1020
    TLH-3020 -30~100 435*480*1020
    TLH-4020 -40~100 485*530*1050
    TLH-030 0~100 0.01 0.05 30 13 3 425*515*910
    TLH-0530 -5~100 485*605*990
    TLH-1030 -10~100 485*605*990
    TLH-2030 -20~100 485*605*990
    TLH-3030 -30~100 485*605*990
    TLH-4030 -40~100 485*605*990





    TLH water bath

    More Detailed Pictures:

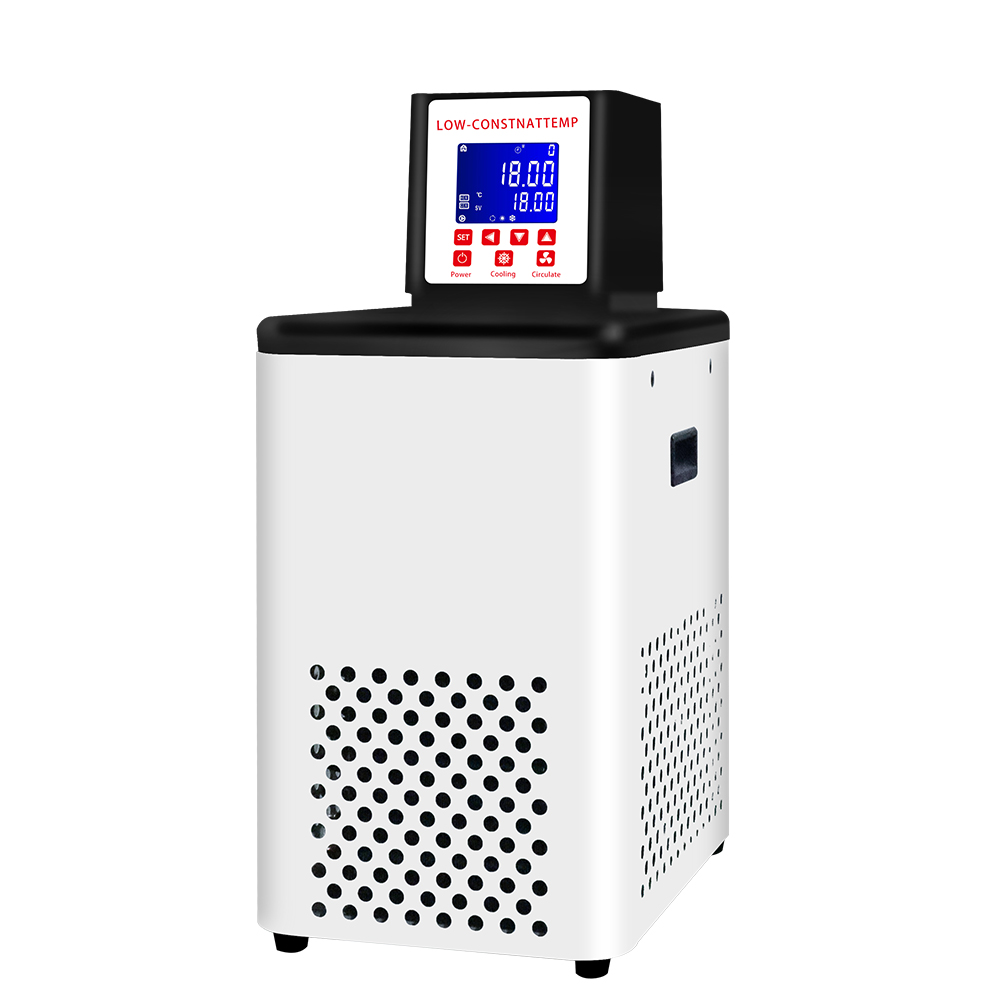

    TLH-2008 LAB WATER BATH
    TLH-2008 LAB WATER BATH
    TLH-2008 (LABORATORY WATER BATH)
    Refrigerating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Refrigeration Cooling Circulator factory
    Thermostat chilled water bath factory
    Thermostat Circulating Water Bath Factory certificate
