SC series RT+10 ~ 100/200/300℃ 6-90L Laboratory thermostatic heating water bath high temperature circulator oil bath

Short Description:

  • Laboratory constant temperature heating bath, SC series thermostatic water oil circulation bath
  • Temperature range: RT+10 ~ 100/200/300℃, Tank Volume: 6-90L
  • Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.05/0.1℃




  • Model: SC-6~SC-90: RT+10~100℃, 6~90L
  • Model: SC-6A~SC-90A: RT+10~200℃, 6~90L
  • Model: SC-6B~SC-15B: RT+10~300℃, 6~15L
  • Product Detail

    Product Tags

    Description:

    Thermostatic water (oil) bath with fast temperature lift, stable, reliable. PID, PT100 temperature measuring, high accuracy, small fluctuation; the instrument working is stable, operation easy. It is widely used Biological engineering, pharmaceutica, l food, chemical metallurgy, and petroleum industry and other fields. Supply high accurate controlled temperature stable place, which is the ideal constant temperature equipment for institute, colleges and universities, the factory laboratory, quality testing department.

    Technical Parameter:

    Model Temperature range (℃) Resolution (℃) Fluctuation (±℃) Tank volume  (L) Slot opening (mm) Slot depth (mm) Pump flow (L/min) Power (kw) Dimensions (mm)
    SC-6 RT+10~100 0.01 0.05 6 180*160 150 6 1.0 300*380*440
    SC-10 10 180*160 200 1.4 300*380*490
    SC-15 15 250*160 200 1.8 340*380*490
    SC-20 20 330*280 150 1.9 480*520*550
    SC-25 25 250*160 300 2.0 340*380*620
    SC-30 30 330*280 230 13 2.1 480*520*550
    SC-40 40 400*380 200 2.5 550*630*520
    SC-50 50 350*320 300 3.0 480*610*620
    SC-70 70 600*300 300 3.4 430*850*650
    SC-90 90 800*300 300 4.5 430*1050*650
    SC-6A RT+10~200 0.01 0.1 6 180*160 150 Inner circulation 1.2 340*380*440
    SC-10A 10 180*160 200 1.5 340*380*490
    SC-15A 15 250*160 200 2.0 340*380*490
    SC-20A 20 330*280 150 2.1 480*520*550
    SC-25A 25 250*160 300 2.2 340*380*620
    SC-30A 30 330*280 230 2.3 480*520*550
    SC-40A 40 400*380 200 2.7 550*630*520
    SC-50A 50 350*320 300 3.2 480*610*620
    SC-70A 70 600*300 300 3.5 430*850*650
    SC-90A 90 800*300 300 4.8 430*1050*650
    SC-6B RT+10~300 0.01 0.1 6 180*160 150 1.5 550*380*475
    SC-10B 10 180*160 200 1.7 550*380*475
    SC-15B 15 250*160 200 2.2 550*380*475



    SC lab thermostat Circulator bath

    More Detailed Pictures:

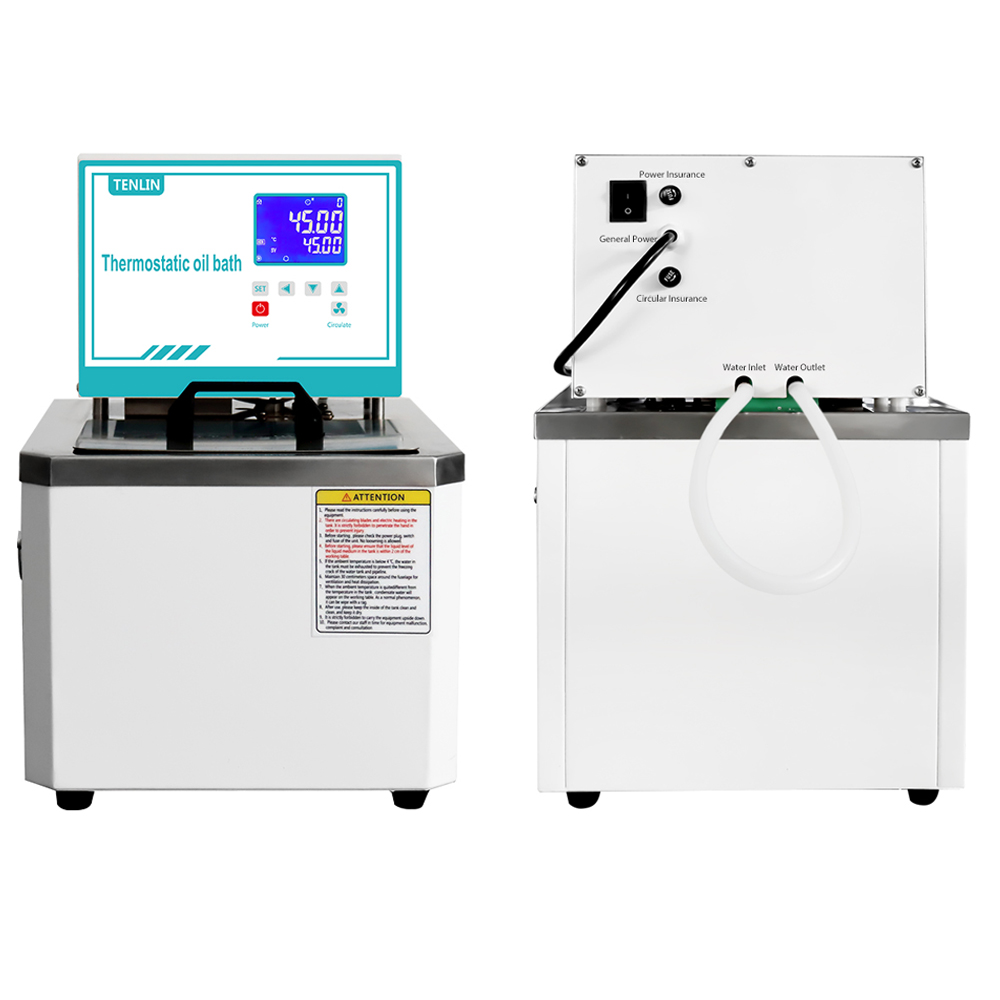

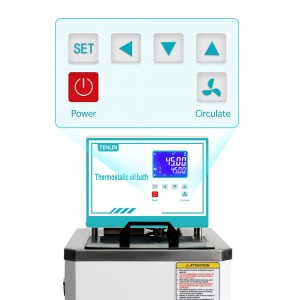

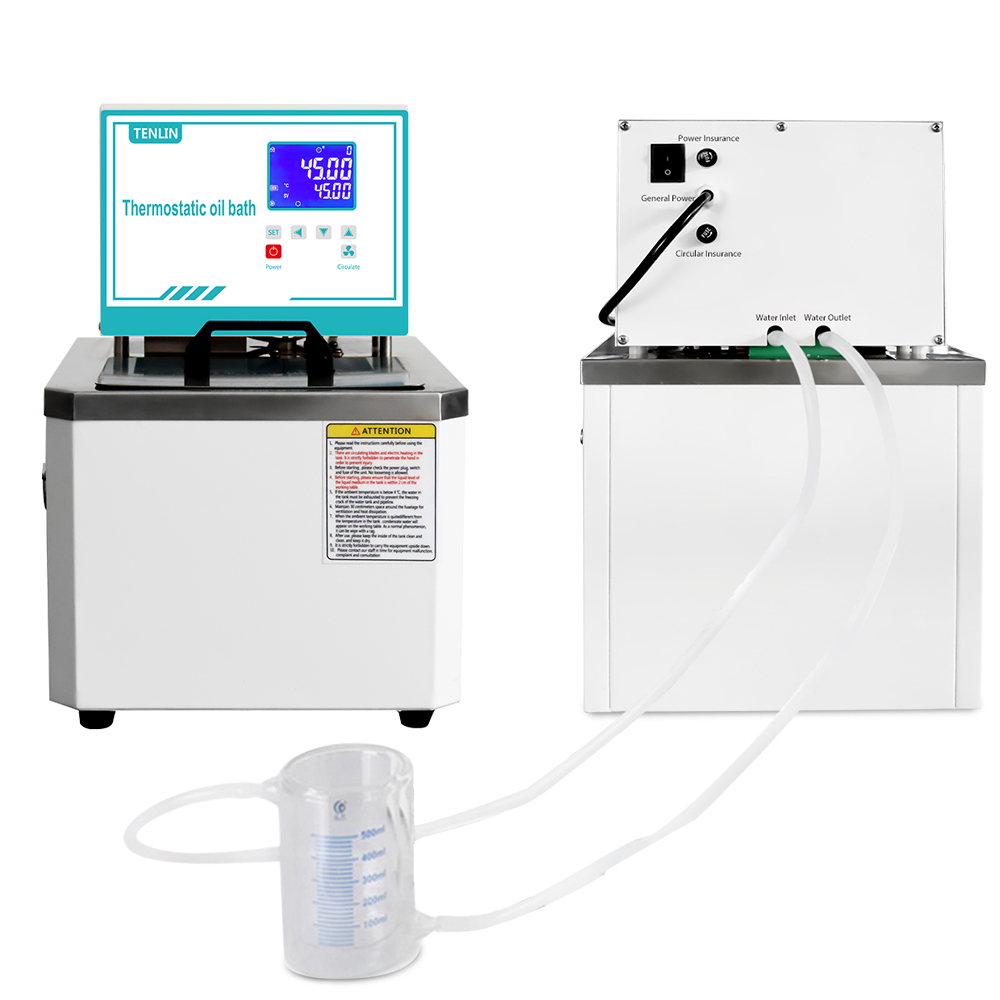

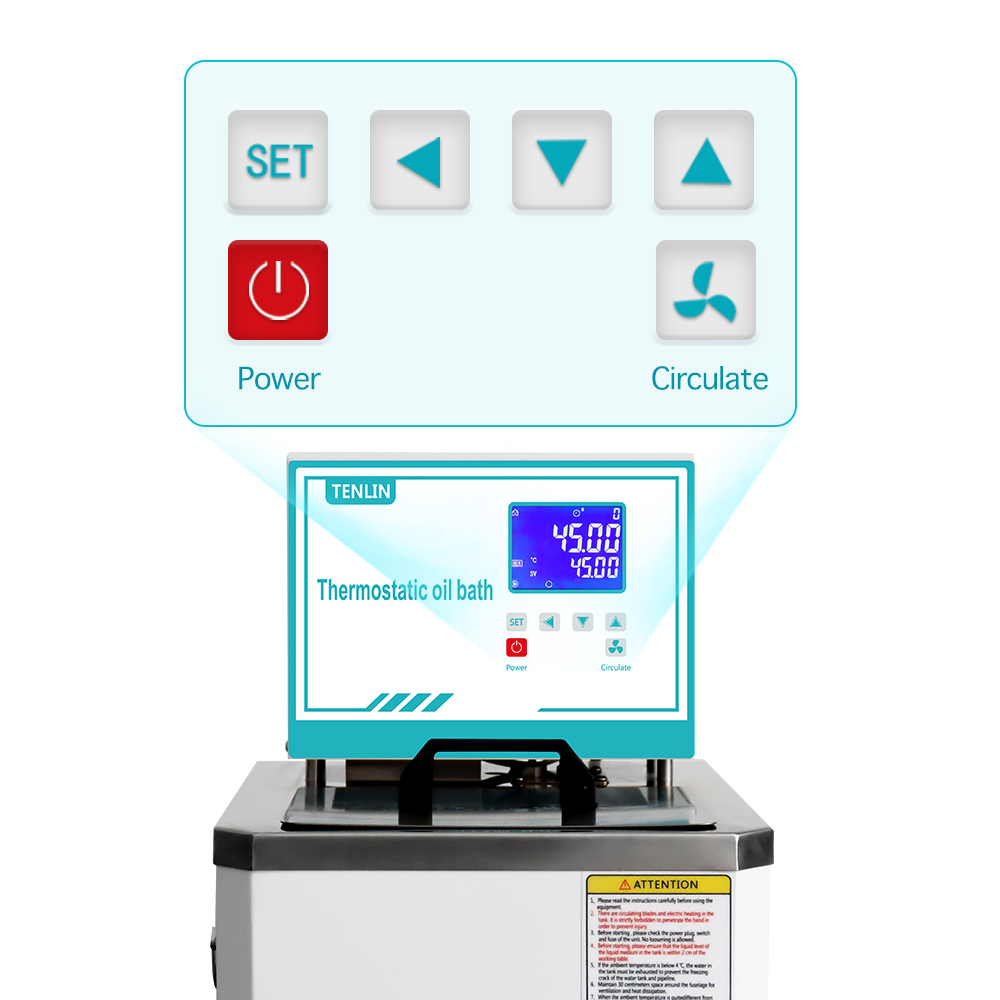

    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Thermostat Circulating Water Bath
    Application of lab circulator bath
    Refrigeration Cooling Circulator factory
    Thermostat chilled water bath factory
    Thermostat Circulating Water Bath Factory certificate
