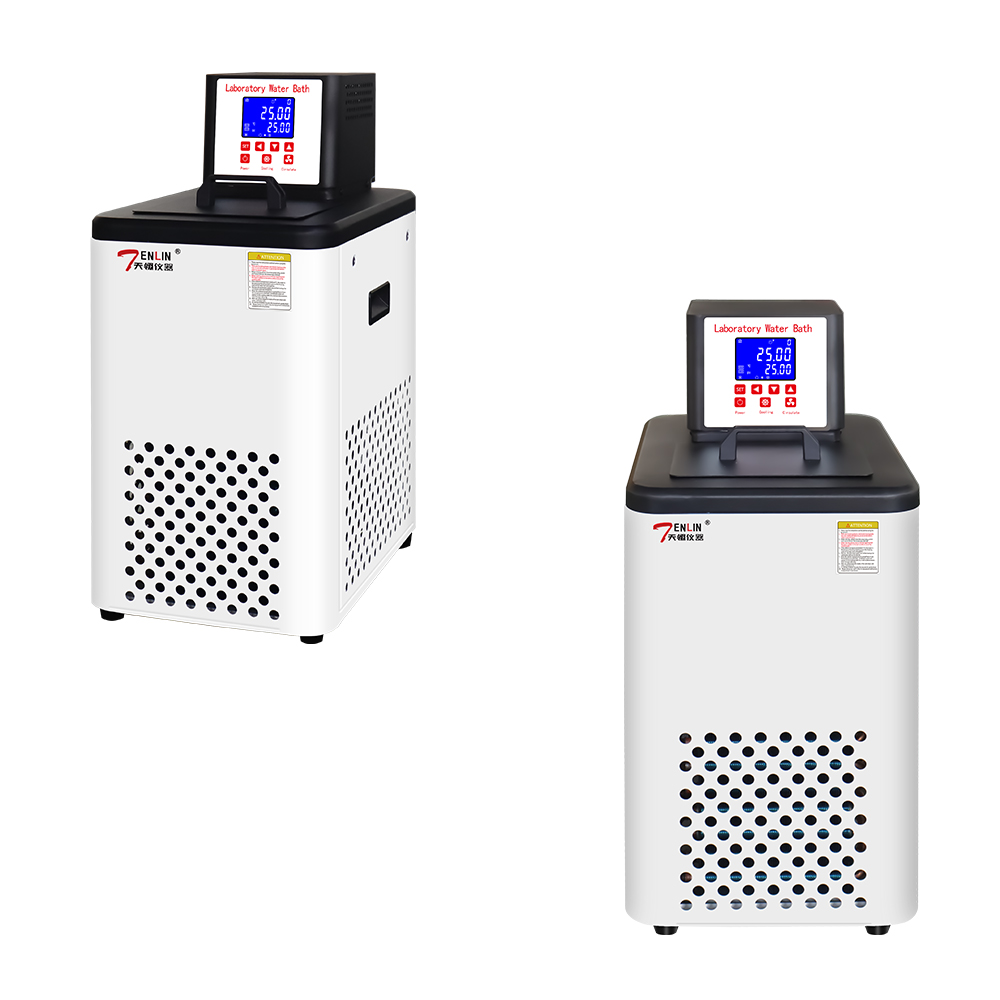

TLD Series Laboratory Low-temperature Thermostat Refrigerated Circulator Water Bath

Short Description:

TLD Laboratory Thermostat Circulating Water Bath
Temperature range: (-5 ~ -40℃) ~ 100℃, Tank Volume: 6~30L
Temperature Resolution: 0.01℃, Temperature Fluctuation: ±0.03℃

Model: TLD-0506~TLD-4006: -5/-10/-20/-30-40℃~100℃, 6L

Model: TLD-0510~TLD-4010: -5/-10/-20/-30-40℃~100℃, 10L

Model: TLD-0515~TLD-4015: -5/-10/-20/-30-40℃~100℃, 15L

Model: TLD-0520~TLD-4020: -5/-10/-20/-30-40℃~100℃, 20L

Model: TLD-0530~TLD-4030: -5/-10/-20/-30-40℃~100℃, 30L

Send email to us

Product Detail

Product Tags

Description:

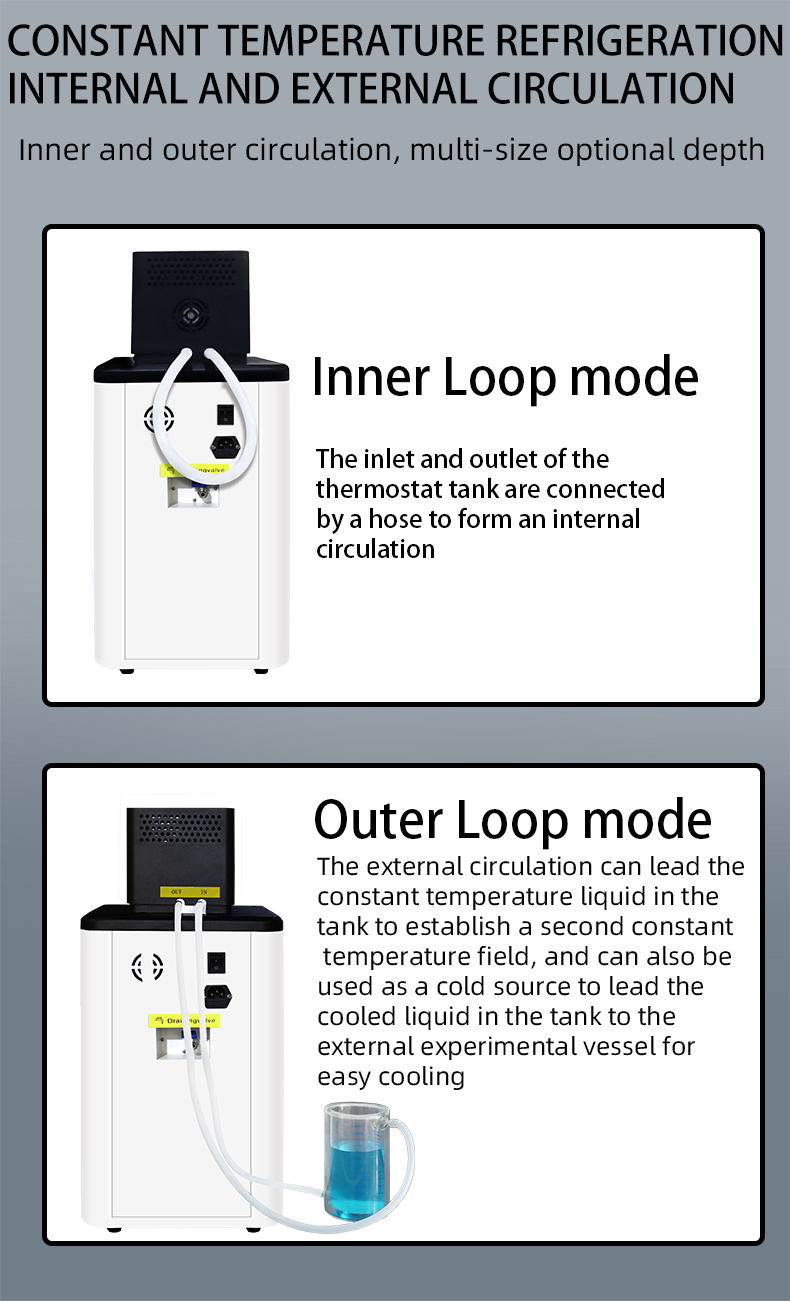

TLD Series Laboratory Thermostat Circulating water bath is widely used in high schools and colleges in the fields of biology, chemistry, pharmaceuticals, life sciences, physical property testing, etc., as well as in quality control and production departments; it is suitable for constant temperature testing in a tank or for the construction of a second constant temperature field with a small reaction device.

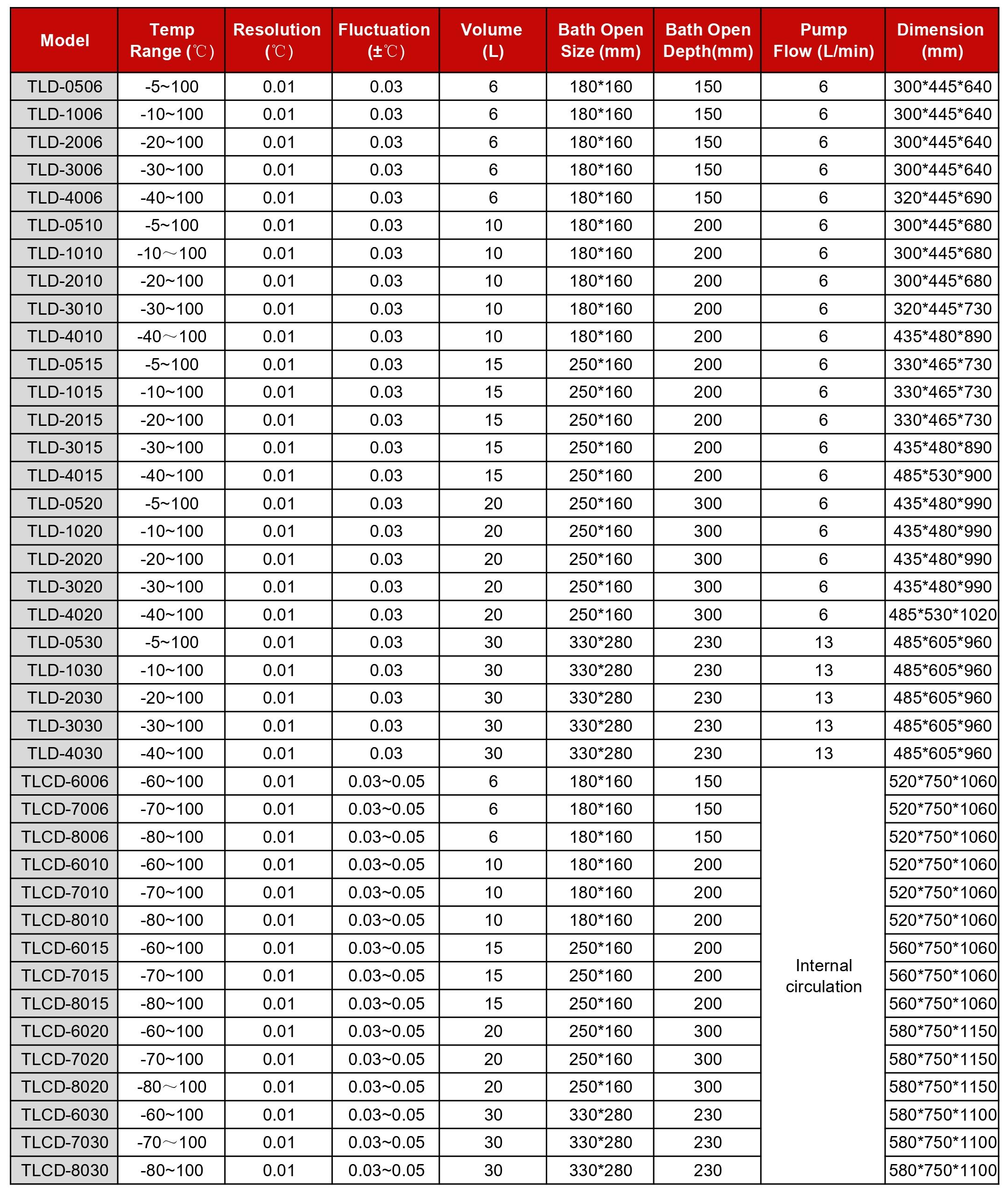

Technical Parameter:

Model	Temp Range (℃)	Resolution (℃)	Fluctuation (±℃)	Volume (L)	Bath Open Size (mm)	Bath Open Depth(mm)	Pump Flow (L/min)	Dimension (mm)
TLD-0506	-5~100	0.01	0.03	6	180*160	150	6	300445640
TLD-1006	-10~100	0.01	0.03	6	180*160	150	6	300445640
TLD-2006	-20~100	0.01	0.03	6	180*160	150	6	300445640
TLD-3006	-30~100	0.01	0.03	6	180*160	150	6	300445640
TLD-4006	-40~100	0.01	0.03	6	180*160	150	6	320445690
TLD-0510	-5~100	0.01	0.03	10	180*160	200	6	300445680
TLD-1010	-10～100	0.01	0.03	10	180*160	200	6	300445680
TLD-2010	-20~100	0.01	0.03	10	180*160	200	6	300445680
TLD-3010	-30~100	0.01	0.03	10	180*160	200	6	320445730
TLD-4010	-40～100	0.01	0.03	10	180*160	200	6	435480890
TLD-0515	-5~100	0.01	0.03	15	250*160	200	6	330465730
TLD-1015	-10~100	0.01	0.03	15	250*160	200	6	330465730
TLD-2015	-20~100	0.01	0.03	15	250*160	200	6	330465730
TLD-3015	-30~100	0.01	0.03	15	250*160	200	6	435480890
TLD-4015	-40~100	0.01	0.03	15	250*160	200	6	485530900
TLD-0520	-5~100	0.01	0.03	20	250*160	300	6	435480990
TLD-1020	-10~100	0.01	0.03	20	250*160	300	6	435480990
TLD-2020	-20~100	0.01	0.03	20	250*160	300	6	435480990
TLD-3020	-30~100	0.01	0.03	20	250*160	300	6	435480990
TLD-4020	-40~100	0.01	0.03	20	250*160	300	6	4855301020
TLD-0530	-5~100	0.01	0.03	30	330*280	230	13	485605960
TLD-1030	-10~100	0.01	0.03	30	330*280	230	13	485605960
TLD-2030	-20~100	0.01	0.03	30	330*280	230	13	485605960
TLD-3030	-30~100	0.01	0.03	30	330*280	230	13	485605960
TLD-4030	-40~100	0.01	0.03	30	330*280	230	13	485605960
TLCD-6006	-60~100	0.01	0.03~0.05	6	180*160	150	Internal circulation	5207501060
TLCD-7006	-70~100	0.01	0.03~0.05	6	180*160	150		5207501060
TLCD-8006	-80~100	0.01	0.03~0.05	6	180*160	150		5207501060
TLCD-6010	-60~100	0.01	0.03~0.05	10	180*160	200		5207501060
TLCD-7010	-70~100	0.01	0.03~0.05	10	180*160	200		5207501060
TLCD-8010	-80~100	0.01	0.03~0.05	10	180*160	200		5207501060
TLCD-6015	-60~100	0.01	0.03~0.05	15	250*160	200		5607501060
TLCD-7015	-70~100	0.01	0.03~0.05	15	250*160	200		5607501060
TLCD-8015	-80~100	0.01	0.03~0.05	15	250*160	200		5607501060
TLCD-6020	-60~100	0.01	0.03~0.05	20	250*160	300		5807501150
TLCD-7020	-70~100	0.01	0.03~0.05	20	250*160	300		5807501150
TLCD-8020	-80～100	0.01	0.03~0.05	20	250*160	300		5807501150
TLCD-6030	-60~100	0.01	0.03~0.05	30	330*280	230		5807501100
TLCD-7030	-70～100	0.01	0.03~0.05	30	330*280	230		5807501100
TLCD-8030	-80~100	0.01	0.03~0.05	30	330*280	230		5807501100
